Removing Front Emergency Call System Antenna

  1. Unclip front emergency call system antenna -1-  with holder.
    1. 1.1 Unclip front emergency call system antenna -1-  with holder.
    2. 1.2 Release and unplug electric plug connection -2-  .

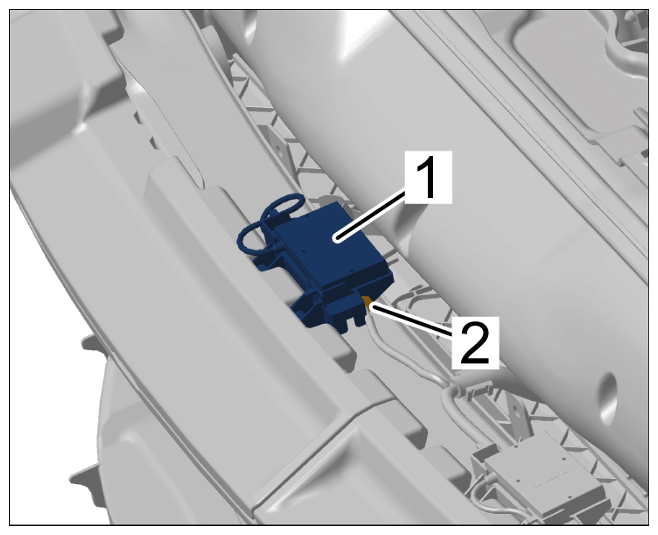

    G15875839Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing front emergency call system antenna
