Removing Telephone Console

  1. Remove rubber mat -2-  from oddments tray.
    G15875817Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing rubber mat

  2. Remove telephone console -1-  .
    1. 2.1 Unscrew and remove screw -3-  .
    2. 2.2 Lift up telephone console -1-  and release and disconnect electric plug connections -4-  .
    3. 2.3 Remove telephone console -1-  .

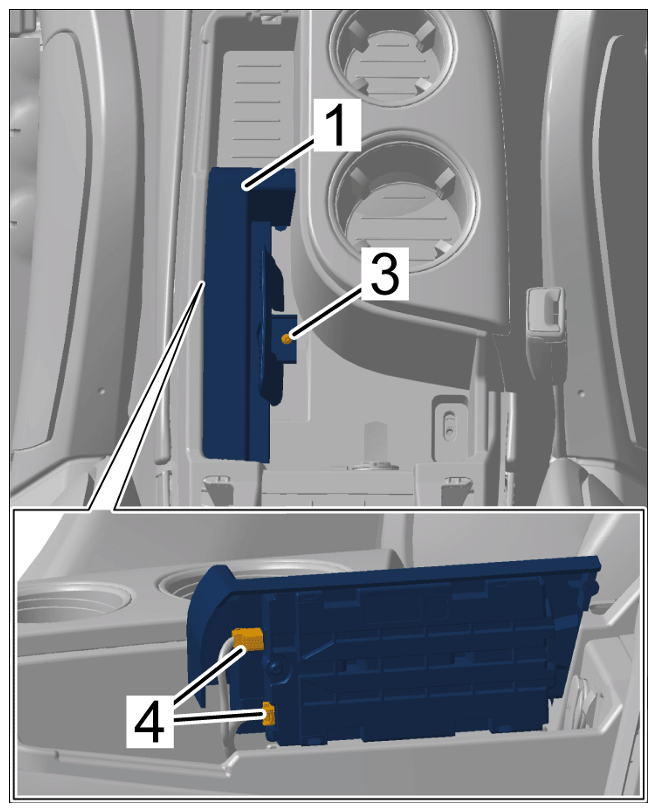

    G15875818Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing telephone console
