Technical Values

Location Descri... Type Basic value Tolerance 1 Tolerance 2
Screw securing antenna amplifier to rear lid Item 1 Tightening torque 2 Nm (1.5 ftlb.) +/- 15 %

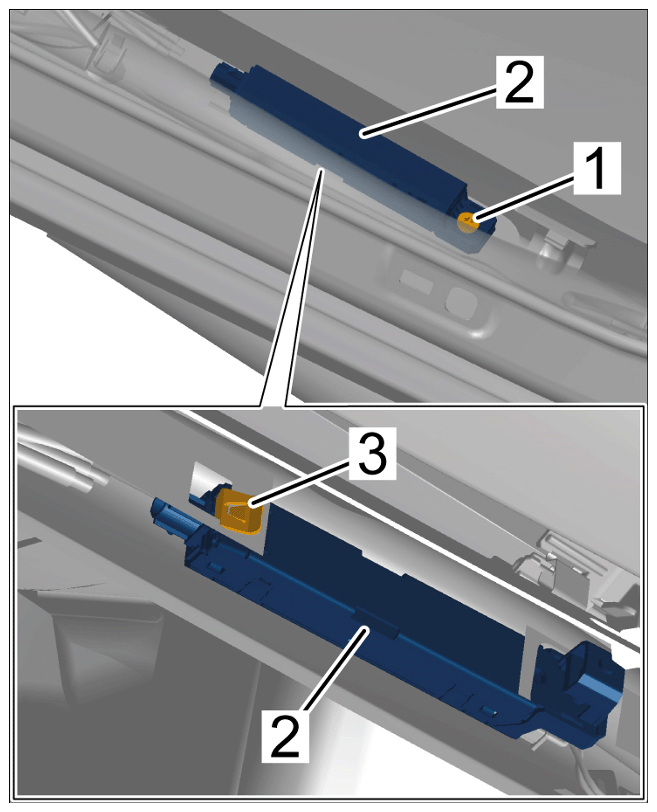

G15875808Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on antenna amplifier on rear lid
