Technical Values

Location Descri... Type Basic value Tolerance 1 Tolerance 2
Side camera to rear-view mirror housing (lower part) Item 2 Tightening torque 0.55 Nm (0.4 ftlb.) +/- 0.25 Nm (0.18 ftlb.)

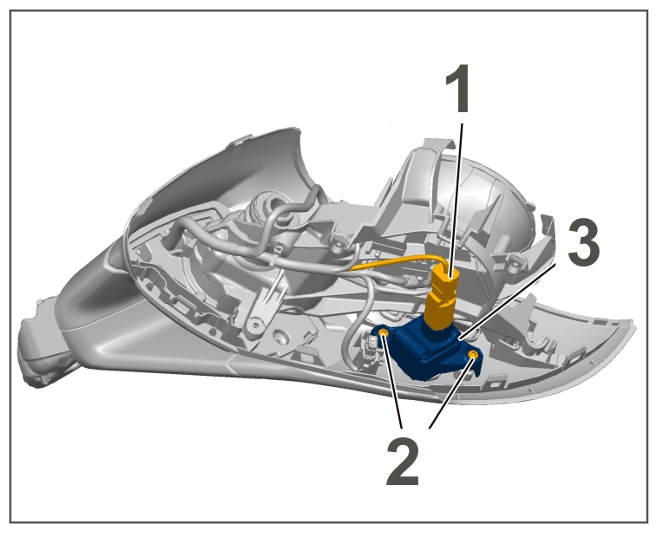

G15875769Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side camera
