Home >> Porsche >> 2020 >> Panamera GTS >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> 91 Radio, On-Board Computer Park Assist -- 971 - PANAMERA (971) >> WM, 914719 Removing And Installing Mobile Communication Antenna >> Preliminary Work

Preliminary Work

  1. Switch off ignition and remove remote control (hand-held transmitter).

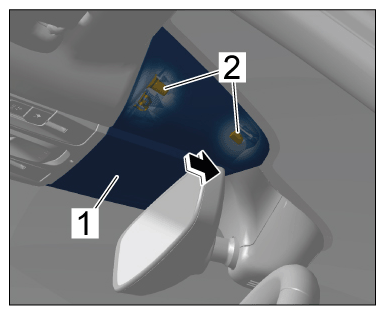

  2. Unclip cover on camera -1-  by pulling it forward -arrow A-  , slide it out of the guide lugs -2-  and remove it.
    G15875742Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping cover on camera
