Technical Values

Location	Des...	Type	Basic val...	Toleranc...
Screws on loudspeaker booster	Item 6	Tightening torque	2.5 Nm (1.8 ftlb.)

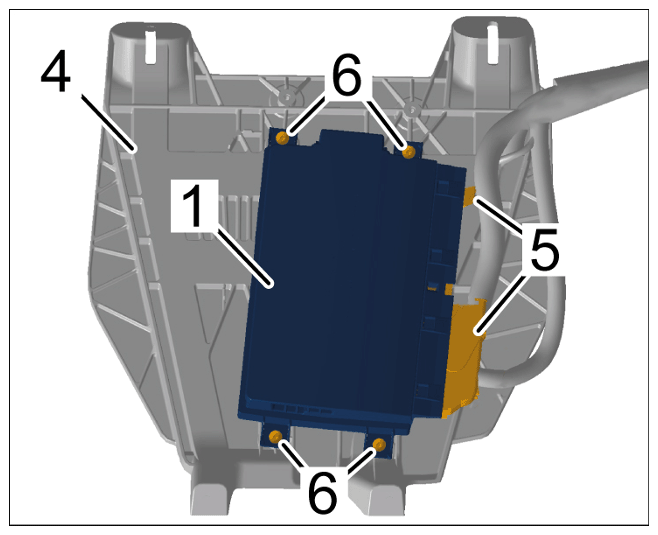

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on loudspeaker booster
Screw for floor plate	Item 3	Tightening torque	8 Nm (6 ftlb.)	+/- 0.5 Nm (0.25 ftlb.)

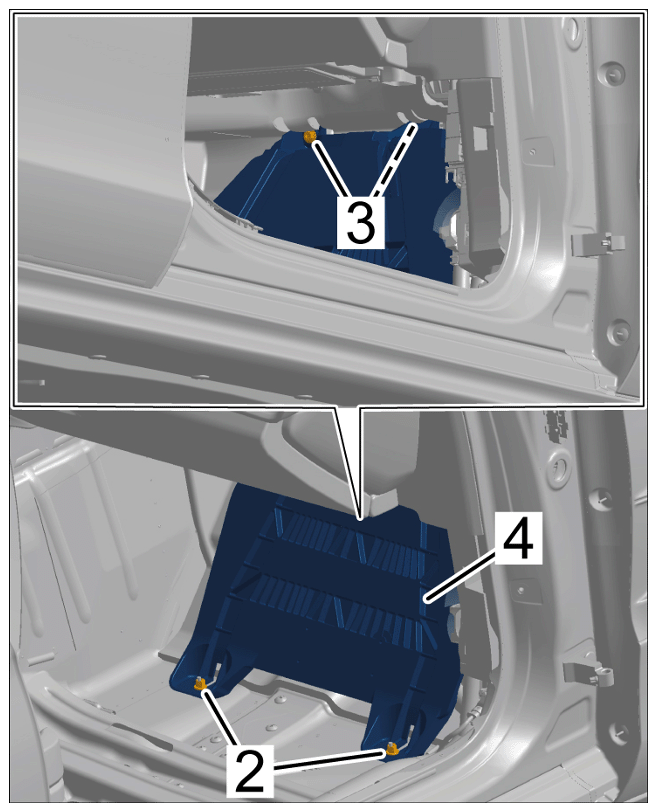

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for floor plate
Nut for floor plate	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)	+/- 0.25 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut for floor plate
