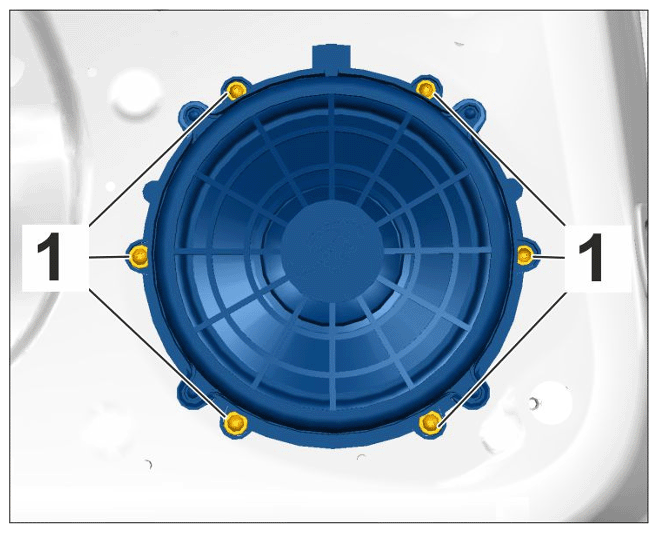

| Woofer to bodyshell |
Item 1 |
Tightening torque |
4 Nm (3 ftlb.) |
+/- 15 % |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screws for woofer |

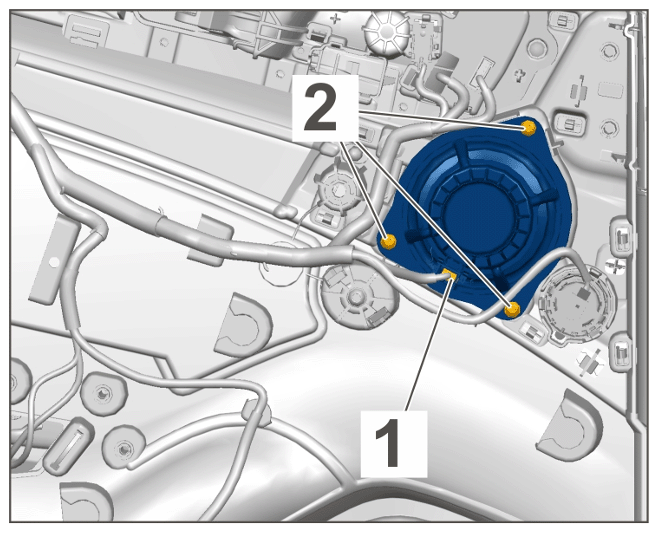

| Mid-range loudspeaker to door panel |
Item 2 |
Tightening torque |
2.3 Nm (1.6 ftlb.) |
+/- 0.5 Nm (0.3 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mid-range loudspeaker |
