Removing Tweeter

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

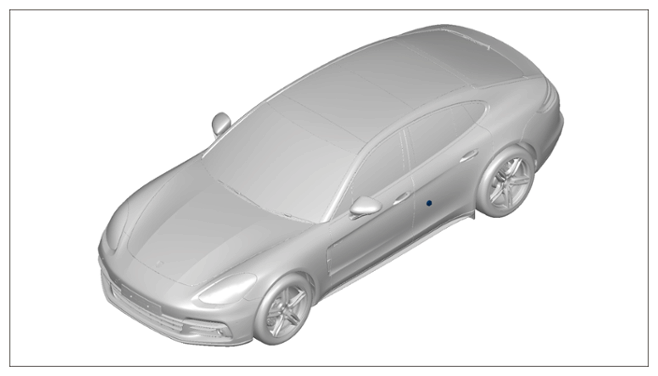

Installation position of tweeter

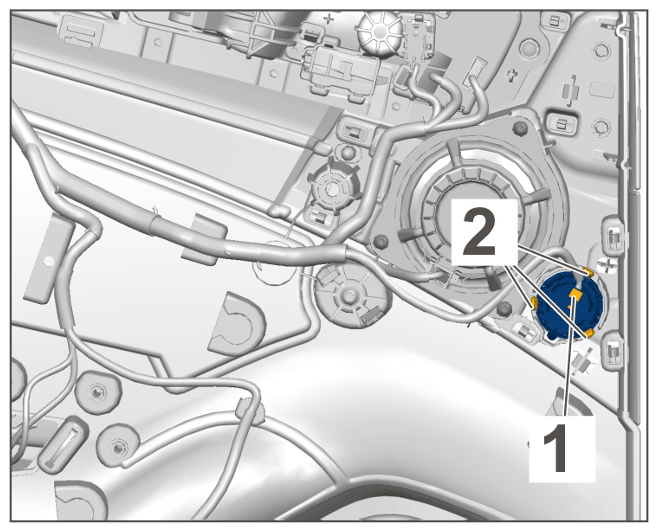

Release and disconnect electric plug connection -1- for tweeter.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tweeter
Unclip fixing clips -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tweeter
Remove tweeter.
