Removing Mid-Range Loudspeaker

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

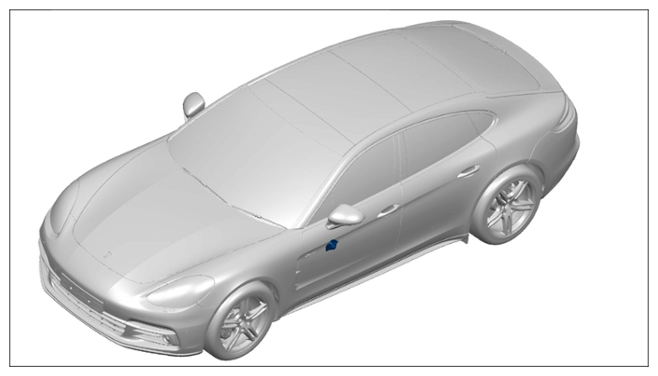

Installation position of mid-range loudspeaker

Release and disconnect electric plug connection for mid-range loudspeaker -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

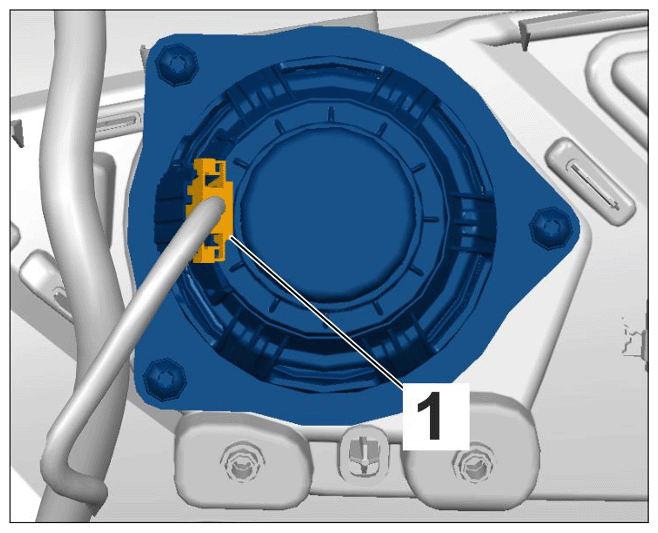

Plug connection for mid-range loudspeaker
Unscrew fastening screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

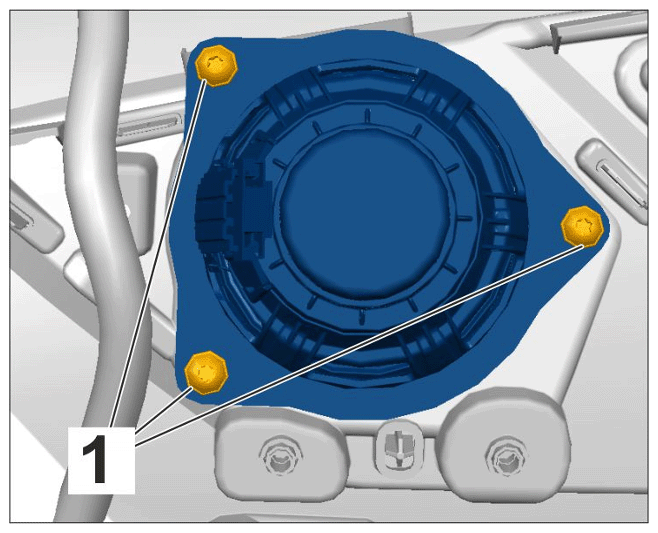

Fastening screws for mid-range loudspeaker
Remove mid-range loudspeaker.
