Removing Front Loudspeaker (In Dashboard) At The Side

NOTE: Voltage peaks
  • Risk of damage to electrical load or to the control unit

    → Remove the ignition key and switch off load before disconnecting or removing load.

  1. On vehicles with Burmester High-End sound system (I-no. 9VJ):

    Remove front loudspeaker (in dashboard) at the side -3-  .

    1. 1.1 Unscrew and remove screw -2-  .
    2. 1.2 Loosen screws -1-  until the front loudspeaker (in dashboard) at the side -3-  can be pulled out.

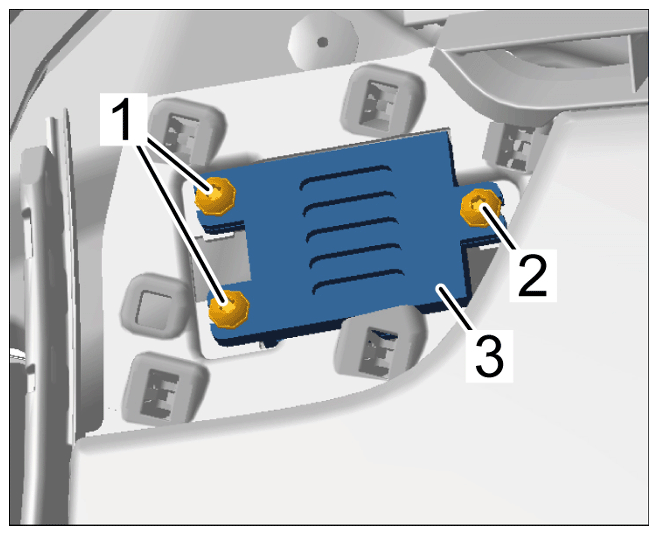

      G15875690Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Loosen front loudspeaker (in dashboard) at the side

    3. 1.3 Pull out front loudspeaker (in dashboard) at the side until the electric plug connection -4-  is accessible.
    4. 1.4 Release and unplug electric plug connection -4-  .
    5. 1.5 Remove front loudspeaker (in dashboard) at the side.

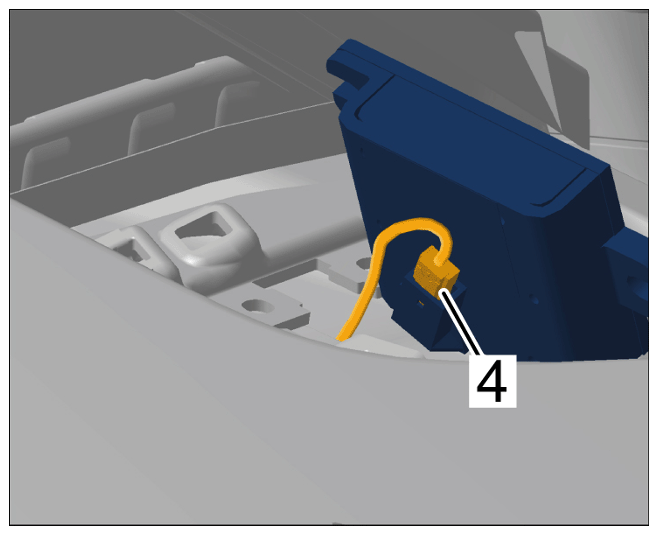

    G15875691Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing front loudspeaker (in dashboard) at the side

  2. On vehicles with Sound package 1/sound package (I-no. 9VK):

    Remove front loudspeaker (in dashboard) at the side -1-  .

    1. 2.1 Open clamps -2-  .

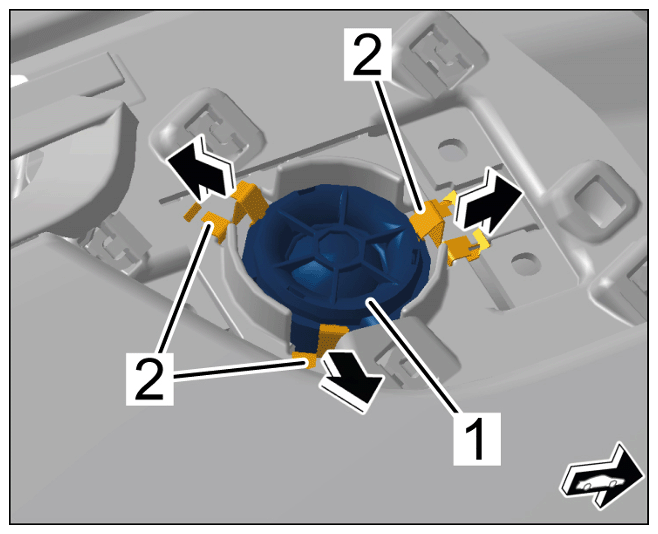

      G15875692Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Opening clamps

    2. 2.2 Loosen front loudspeaker (in dashboard) at the side -1-  until the electric plug connection -3-  is accessible.
    3. 2.3 Release and unplug electric plug connection -3-  .
    4. 2.4 Remove front loudspeaker (in dashboard) at the side -1-  .

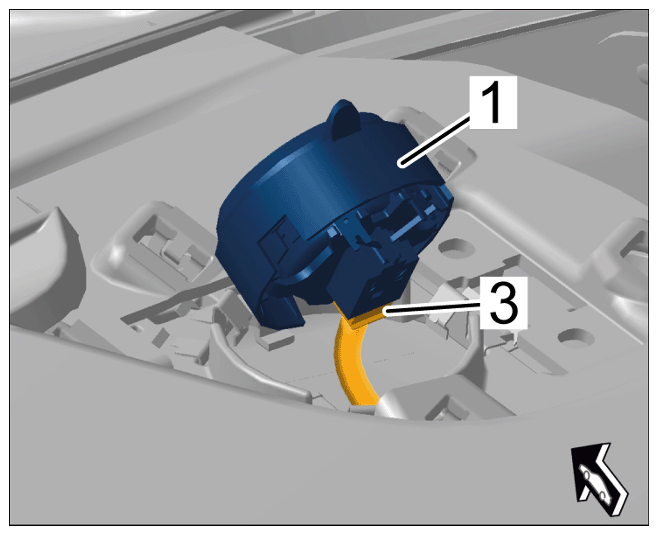

    G15875693Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing front loudspeaker (in dashboard) at the side
