Removing SDARS Antenna

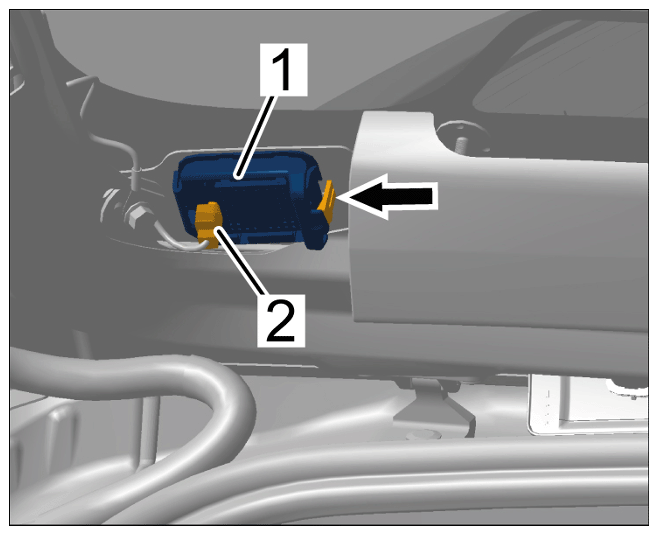

  1. Release and unplug electric plug connection -2-  .
    G15875684Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and pulling off electric plug connection

  2. Unclip holder with SDARS antenna -1-  from the rear lid -arrow-  .
    G15875685Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing SDARS antenna

  3. Remove SDARS antenna from the holder.
