Removing TV Tuner

NOTE: Incorrect handling of optical waveguides

Risk of damage to optical waveguide
→ Observe the requirements for working with and installing optical waveguides.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

Switch off ignition and remove remote control (hand-held transmitter).
Unscrew screws -2- and set bracket aside with the lines connected -3- .

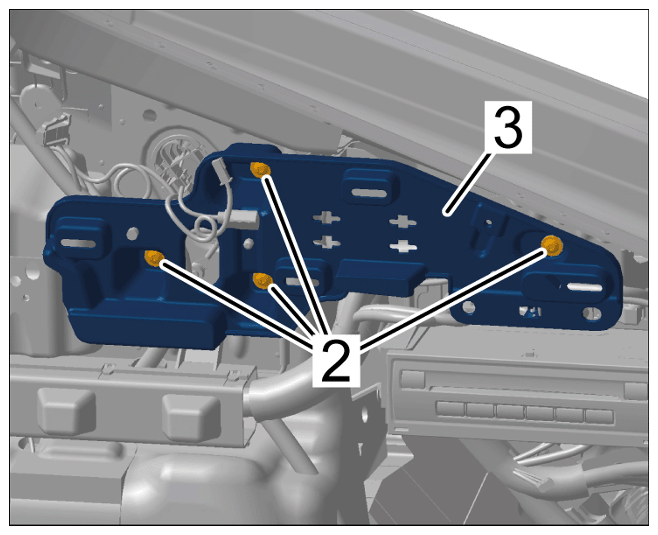

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing bracket

Information

The number of electric plug connections will vary depending on equipment.
Release and disconnect electric plug connections -4- .

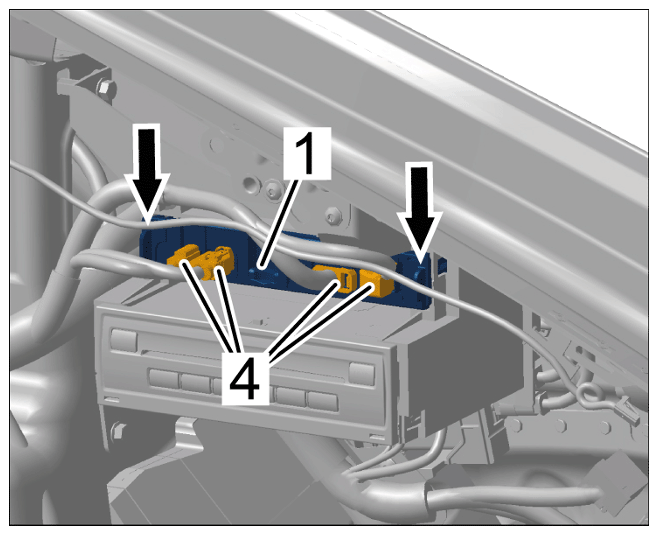

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connections
Guide in special tool > 9570/1 - Disassembly tool on the TV tuner -1- at the left and right -arrows- and remove TV tuner -1- by pulling it forward.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing TV tuner
