Removing Servo Motor For Bypass Heat Flap In Front Left FOOTWELL

  1. Remove servo motor for bypass heat flap in front left footwell -3-  .

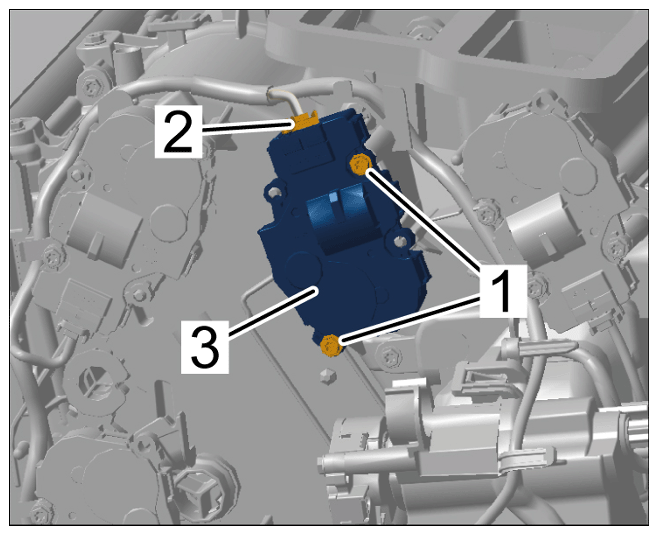

    G15874987Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing servo motor for bypass heat flap in front left footwell

    1. 1.1 Unscrew and remove screws -1-  .
    2. 1.2 Release and unplug electric plug connection -2-  .
    3. 1.3 Remove servo motor for bypass heat flap in front left footwell -3-  .
