Removing Exhaust Pipe

CAUTION: Hot components
  • Risk of burns

    → Let hot components cool down.

    → Wear personal protective gear.

  1. Open clamp -4-  and remove exhaust pipe -1-  from the heater.

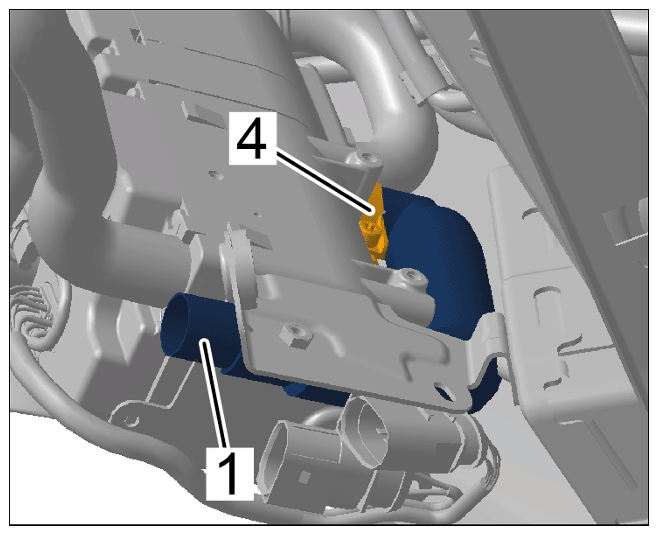

    G15874874Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing exhaust pipe
