Preliminary Work

  1. Remove front wheel housing liner at the right (rear section).

    > WM, 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER

  2. Remove left side section of cover for centre underbody.

    > WM, 519319 REMOVING AND INSTALLING COVER FOR CENTRE UNDERBODY

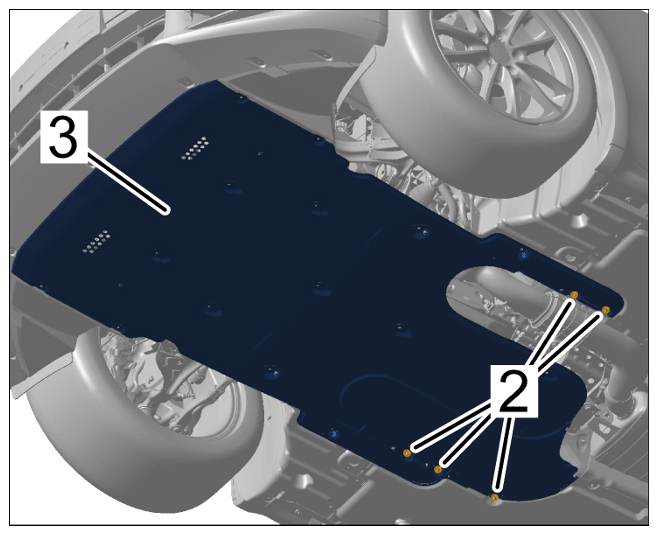

  3. Loosen three nuts -2-  on the front underbody cover in the right strut area.
    G15874868Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing cover for front underbody

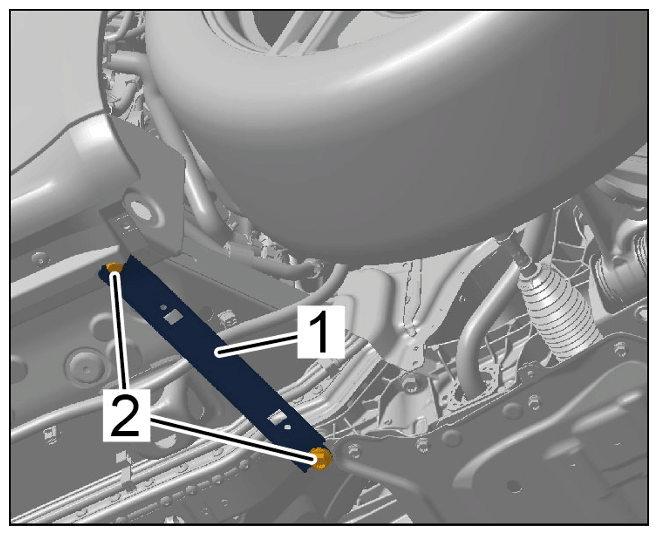

  4. Unscrew screws -2-  and remove strut -1-  .
    G15874869Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing strut
