Removing Fuel Line (From Fuel Tank To Fuel Pump)

WARNING: Emerging fuel
  • Risk of fire

    → Disconnect the battery.

    → Avoid contact with hot parts or sources of ignition.

    → Allow engine to cool down.

    → Relieve the fuel pressure before opening the fuel lines.

    → Collect emerging fuel, absorb it if necessary with a suitable binding material and dispose of properly.

    → Use suction to remove ignitable vapours.

    → Attach warning sign to vehicle in a clearly visible position.

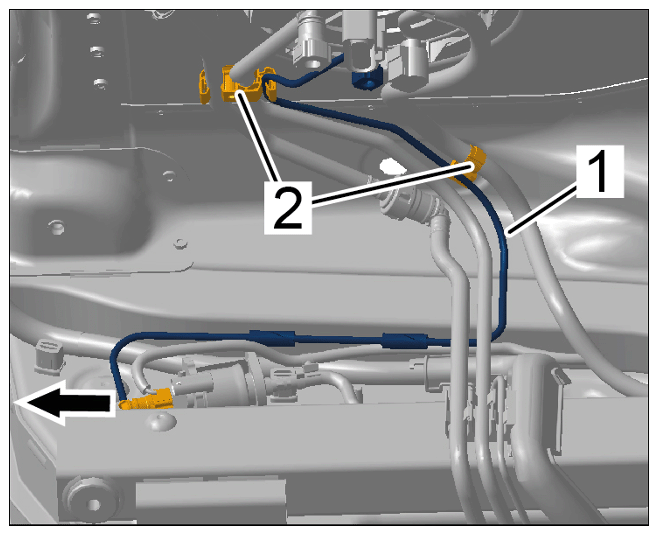

  1. Disconnect fuel line -1-  at the fuel pump -arrow-  .
  2. Unclip fuel line -1-  from the holder -2-  and guide it out.
    G15874863Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing fuel line
