Subsequent Work

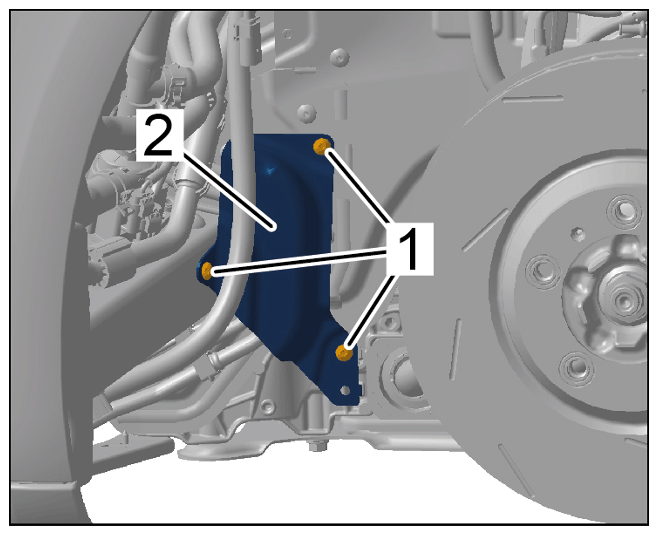

  1. Fit sheetmetal panel -2-  and screw in and tighten screws -1-  > Tightening torque 8 Nm (6 ftlb.)
    G15874860Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing sheetmetal panel

  2. Install front wheel housing liner at the right (rear section).

    > WM, 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER

  3. Install fuel tank.

    > Removing and installing fuel tank
