Removing Intake Muffler

  1. Observe safety measures for working on vehicles with auxiliary heating.

    > 8X00IN SAFETY MEASURES WHEN WORKING ON VEHICLES WITH AUXILIARY HEATING

  2. Cut tie-wrap -1-  on the intake muffler -2-  .

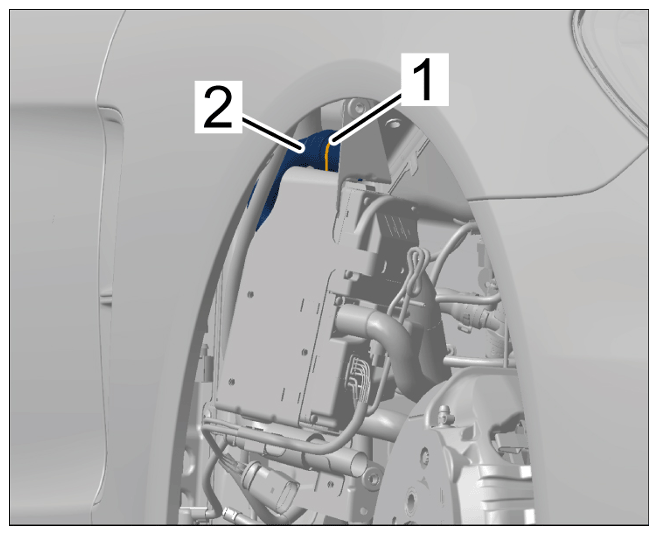

    G15874836Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cutting tie-wraps

  3. Remove intake muffler -2-  .
    1. 3.1 Loosen clamp -1-  using a suitable tool.
    2. 3.2 Remove intake muffler -2-  .

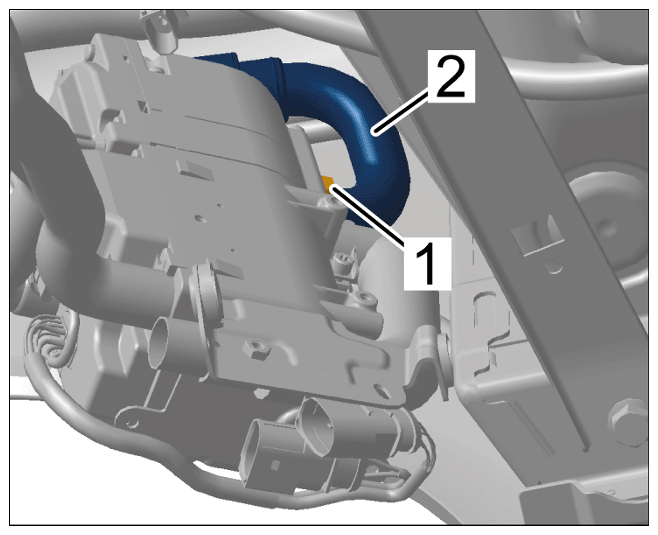

      G15874837Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing intake muffler
