Removing Sun Blind
WARNING: This page is about a different variant/trim than selected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

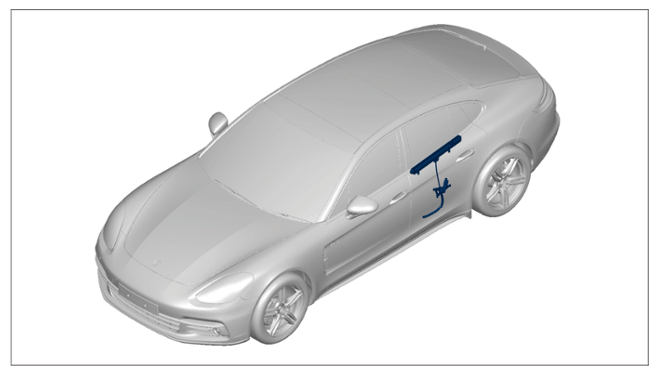

Installation position of sun blind

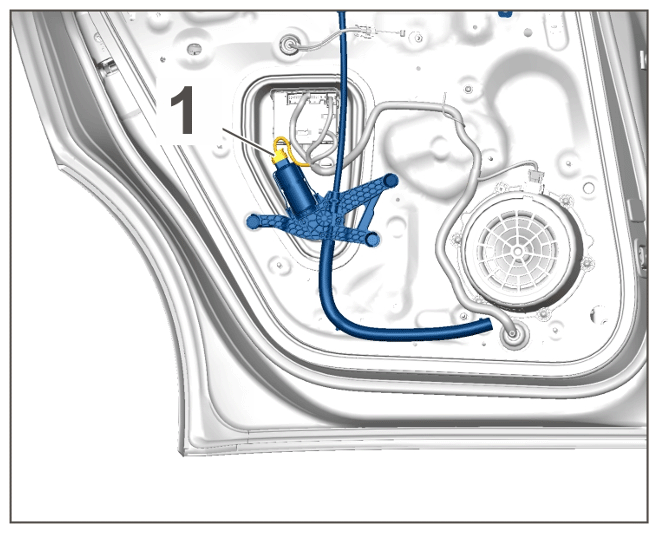

- Release and disconnect electric plug connection -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connection

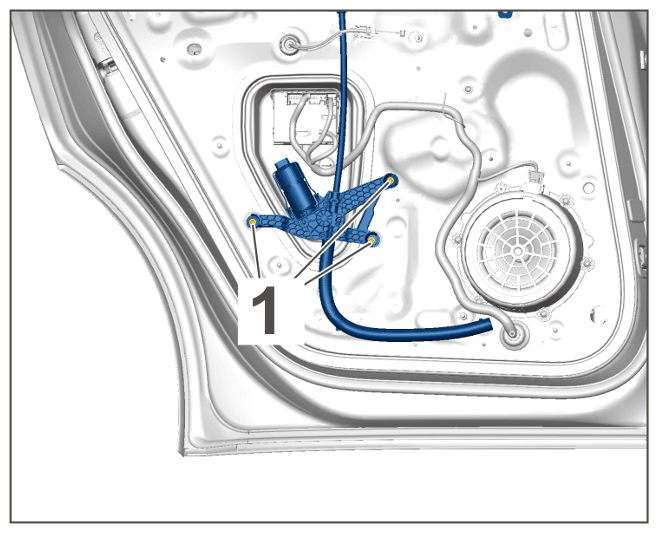

- Unscrew fastening screws -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Fastening screws

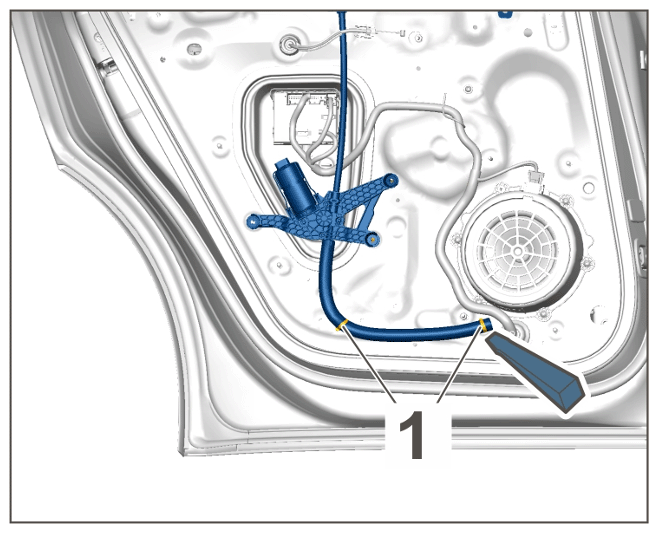

- Unclip fixing clips -1-
using a plastic wedge
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Fixing clips

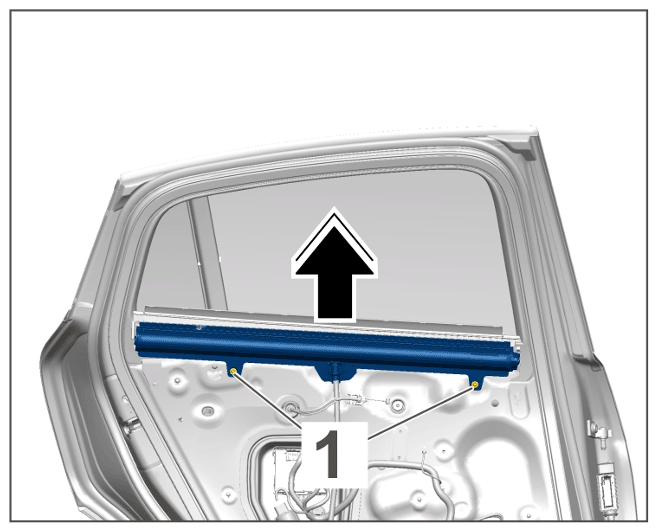

- Unscrew fastening screws -1-
and remove sun blind. -arrow-
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing sun blind
