Removing Sun Blind For Rear Window

WARNING: This page is about a different variant/trim than selected.

Retract sun blind for rear window.
Only for vehicles with rear shelf (I-no. 3U47):
Disengage rear shelf -1- from the rear lid and unclip it at the front.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear shelf
Only for vehicles with roll-up blind (I-no. 3U4):
Disengage luggage compartment cover -1- at the rear and retract roll-up blind.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disengaging luggage compartment cover

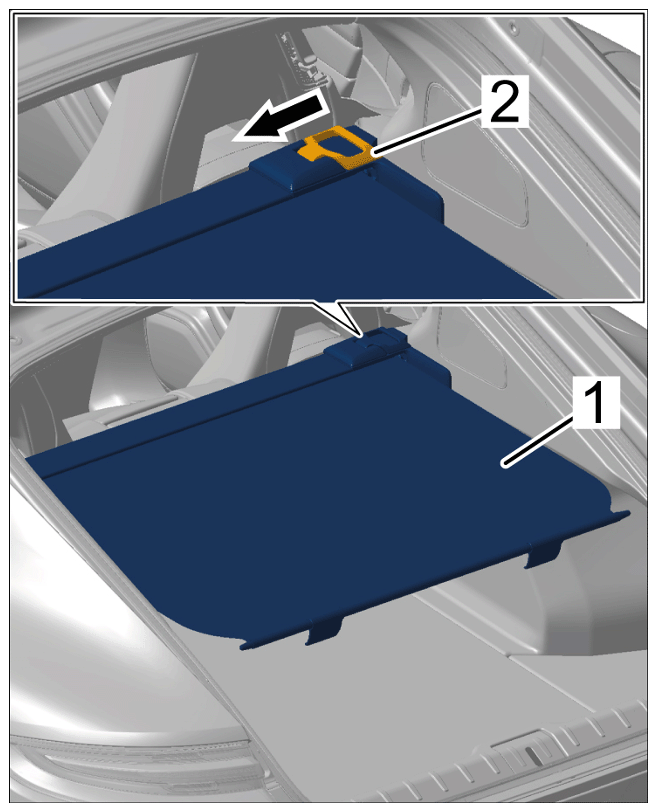

Pull up lever -2- and push sun blind for rear window together -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing luggage compartment cover
Guide out and remove sun blind for rear window.
