Removing Rear CUPHOLDER
WARNING: This page is about a different variant/trim than selected.

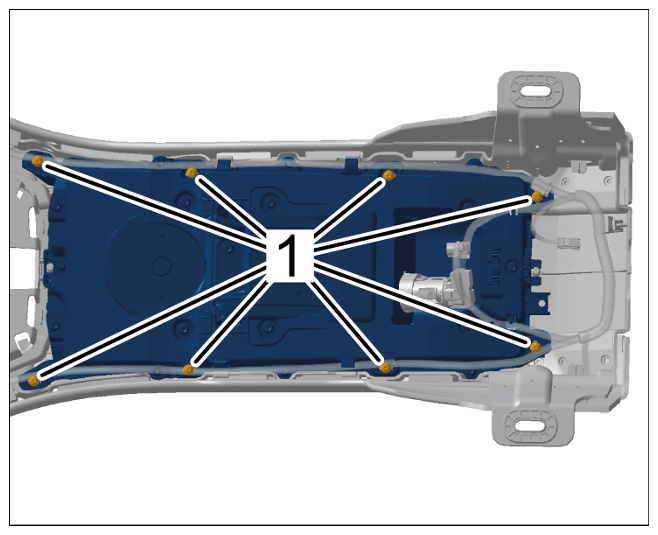

- Unscrew screws -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screws for rear cupholder

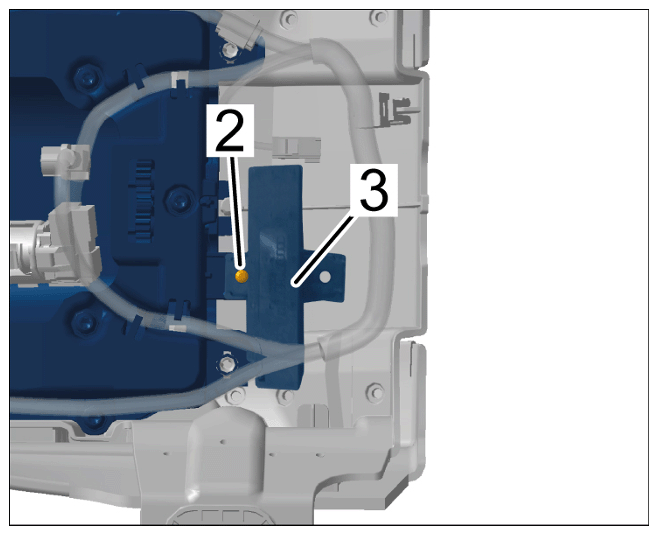

- Loosen Kessy antenna -3-
from clip -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
KESSY antenna

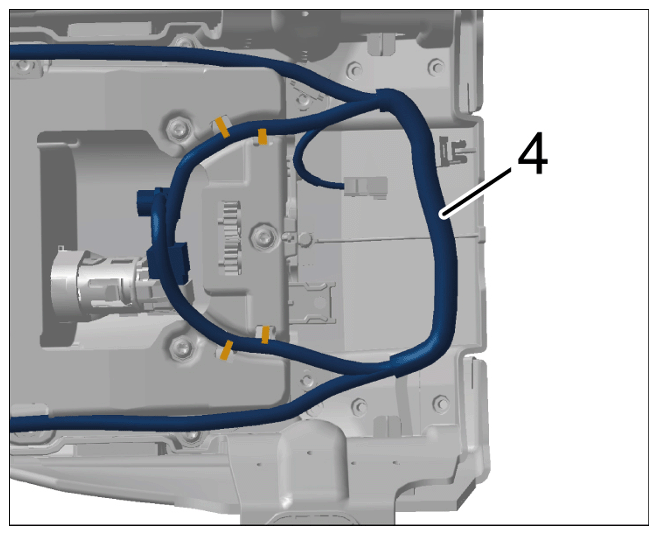

- Unclip electric line -4-
from retaining lugs.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Line bracket

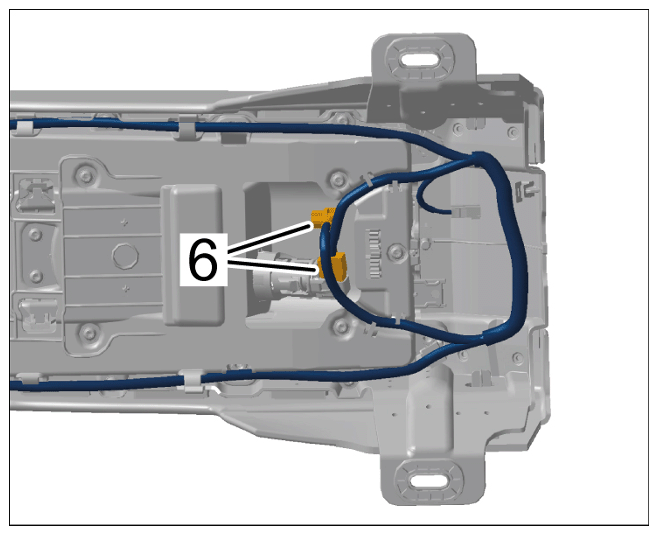

- Release and unplug electric plug connections -6-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connections

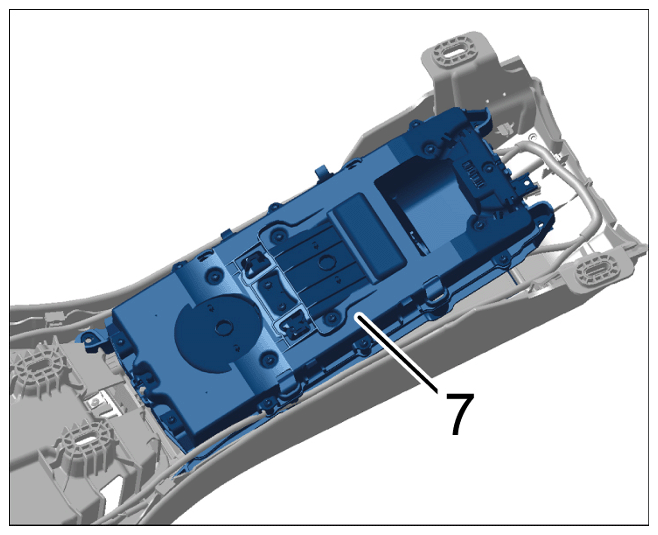

- Remove rear cupholder -7-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear cupholder
