Removing Rear Centre Console
WARNING: This page is about a different variant/trim than selected.

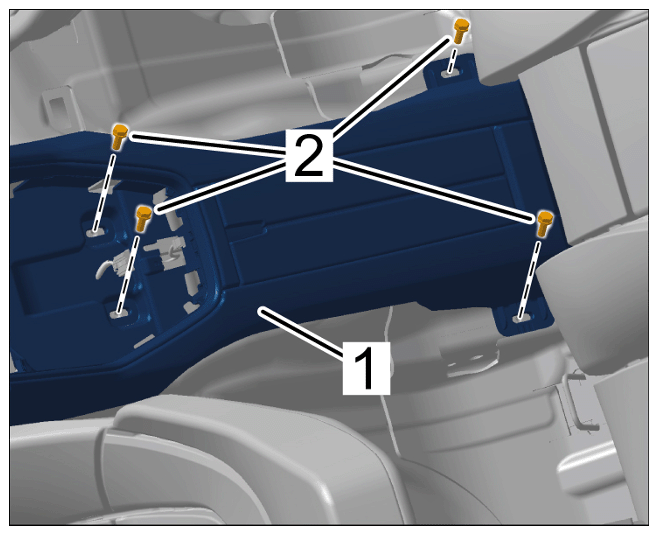

- Unscrew screws -2-
on rear centre console -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unscrewing screws

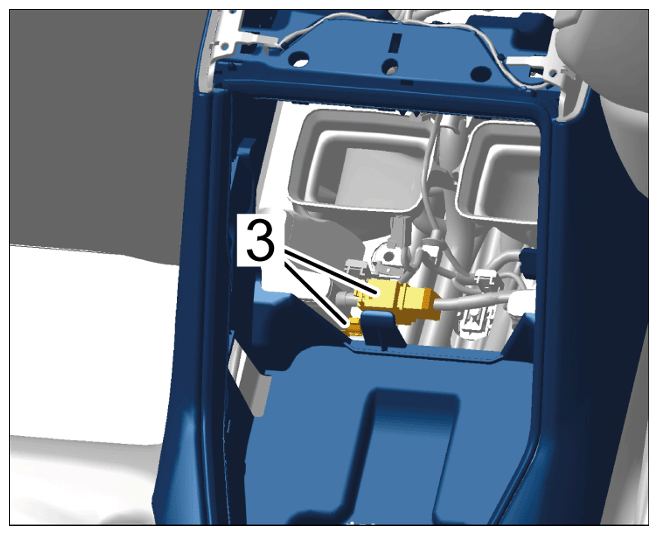

- Release and disconnect electric plug connections -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Disconnect the electric plug connections

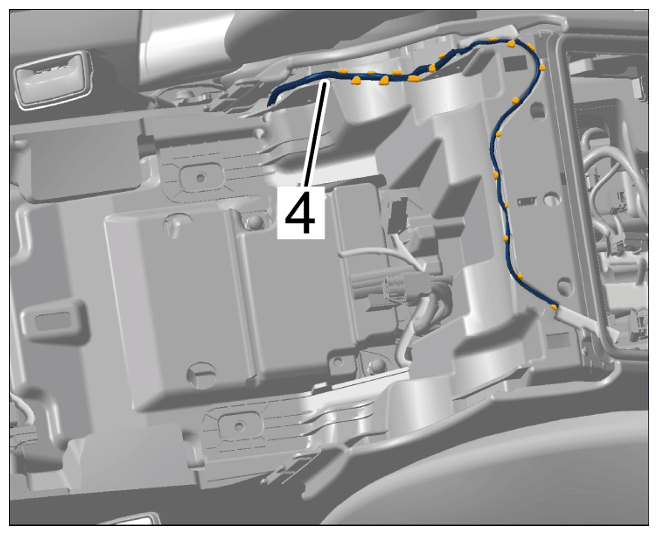

- Guide antenna -4-
out of the rear centre console.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Guiding out antenna
- Remove rear centre console.
