Removing Sun Visor

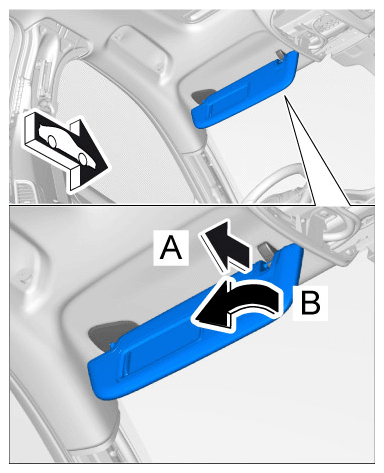

1. Loosen sun visor from its bracket.
   1. 1.1 Fold down sun visor and unclip it from its bracket -Arrow A-  .
   2. 1.2 Swivel out the sun visor -Arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sun visor bracket

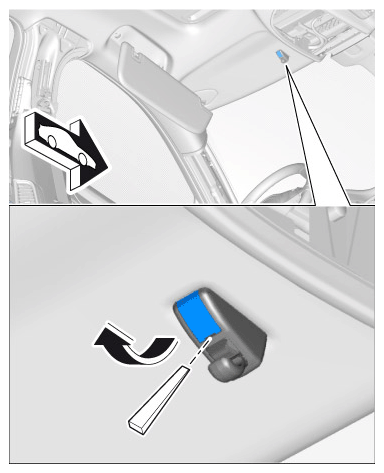

2. Open cover on sun visor holder -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sun visor cover

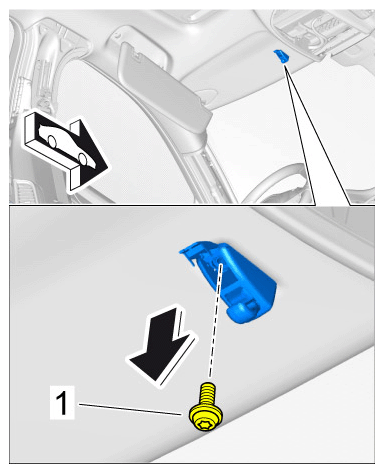

3. Unscrew screw -1-  on the sun visor bearing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sun visor bearing

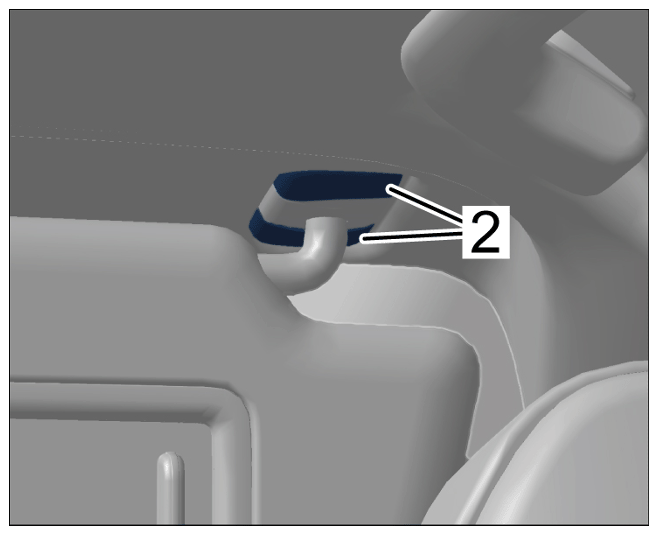

4. Unclip covers -2-  from the sun visor base using a suitable tool.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sun visor covers

5. Unclip sun visor and roof trim panel from bodyshell.
6. Pull roof trim panel down slightly.

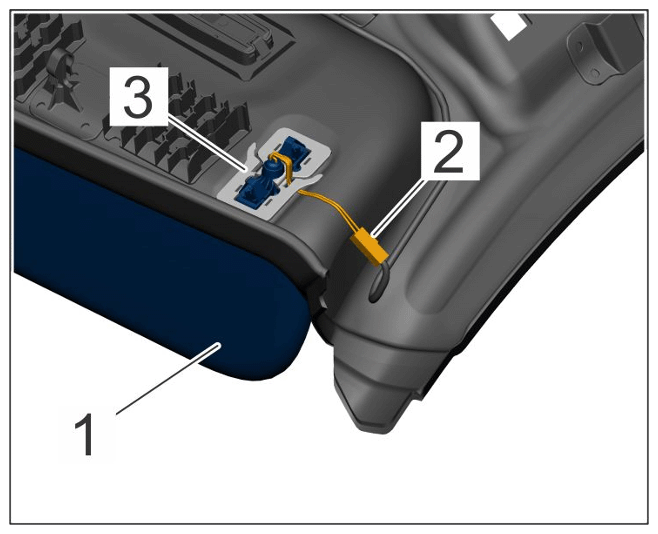

7. Guide out wiring harness -2-  from holder -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line holder

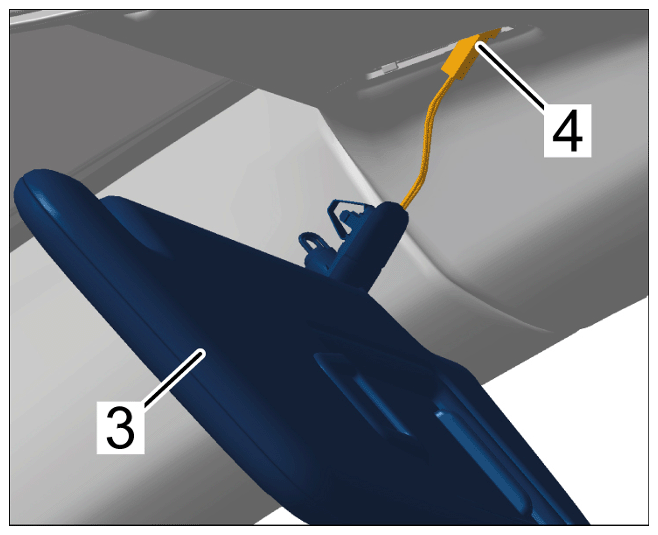

8. Remove sun visor -3-  and release and unplug electric plug connection -4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun visor
