Removing Upper Part Of Centre Console Cover

WARNING: This page is about a different variant/trim than selected.

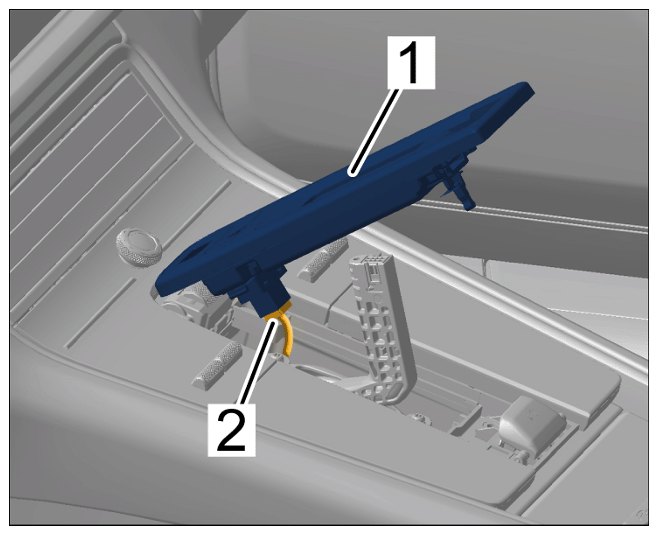

  1. Unclip upper part of centre console cover by pulling it upwards -1-  and release and disconnect electric plug connection -2-  .
    G15866437Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing upper part of centre console cover

  2. Only when replacing components:

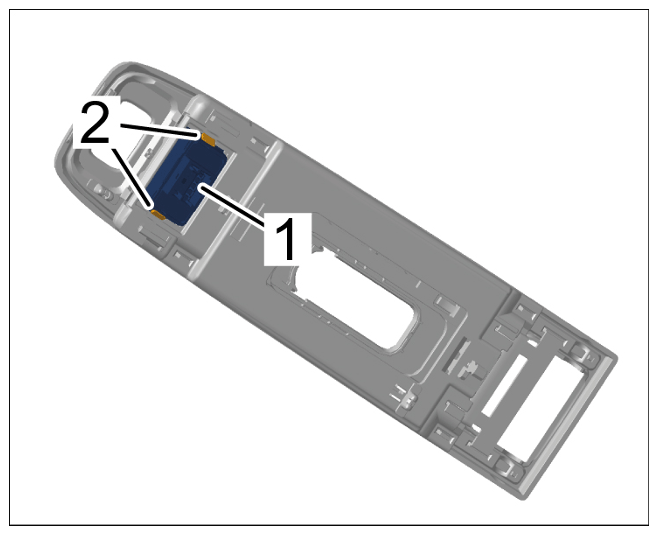

    Release clamps -2-  and unclip hazard warning light switch -1-  .

G15866438Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing hazard warning light switch
