Removing Centre Console

Information

The number of electric plug connections will vary depending on equipment.

1. Unscrew and remove screws -2-  on centre console -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing screws

2. Release and disconnect electric plug connection -3-  on KESSY antenna -5-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

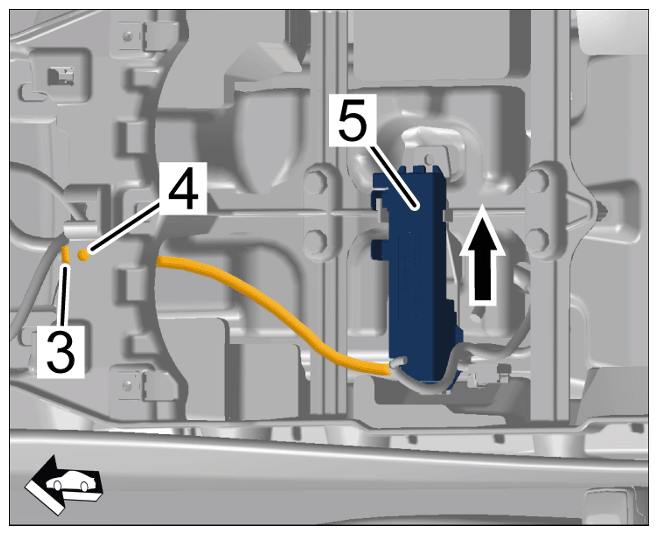

   Releasing and disconnecting electric plug connection on KESSY antenna

3. Lift up centre console -1-  at the rear -arrow A-  and guide it out -arrow B-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

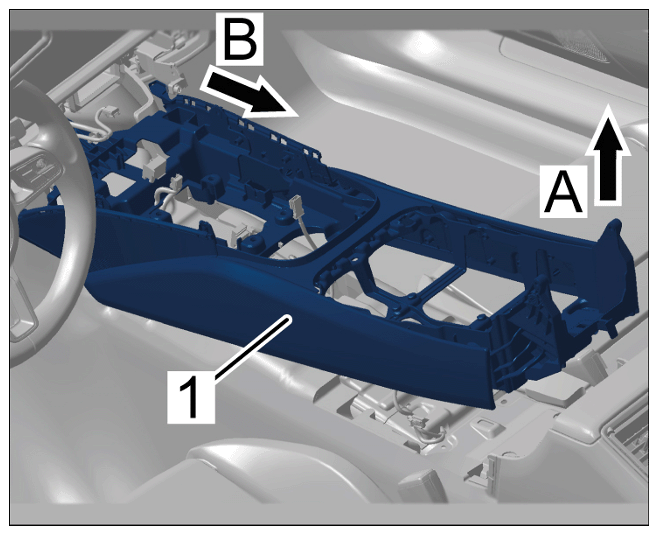

Removing centre console
