Removing Cover For Oddments Tray

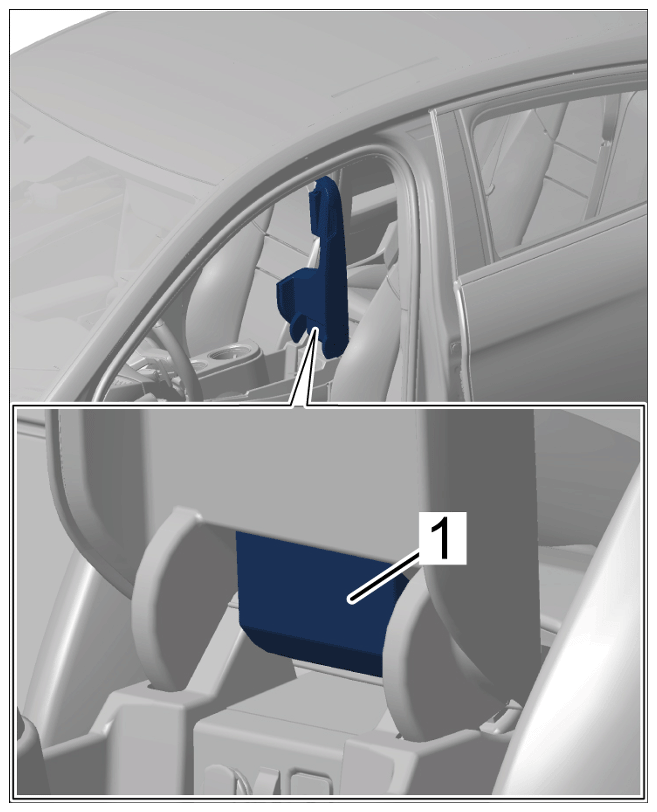

1. Unclip trim -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping cover

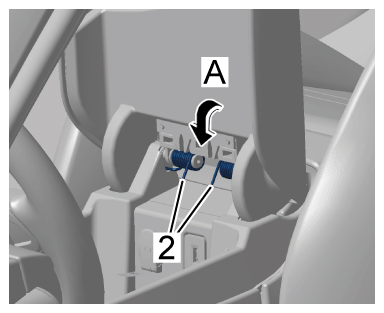

2. Disengage springs -2-  at the inner spring end from cover for oddments tray by pulling them forward -arrow A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disengaging springs

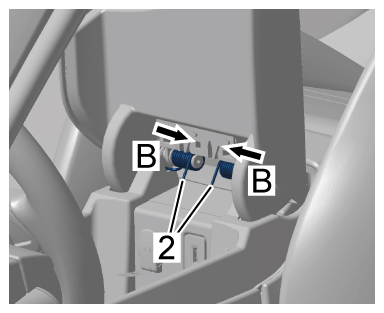

3. Push springs -2-  inwards -arrow B-  and remove them.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing springs

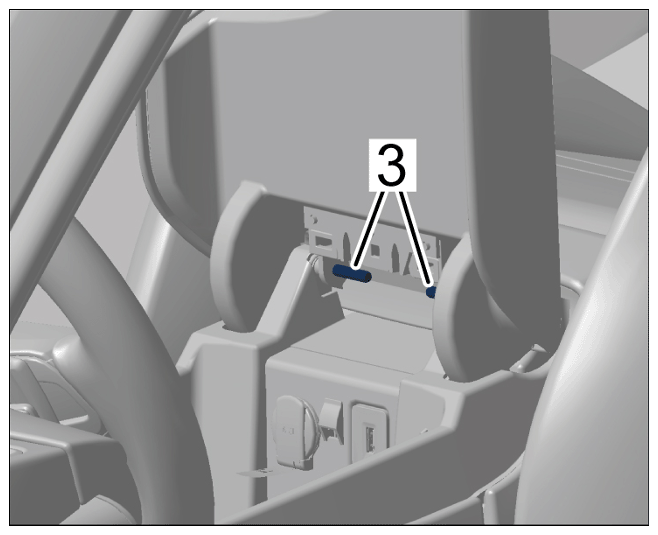

4. Pull bolts -3-  out of the hinges.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing bolts

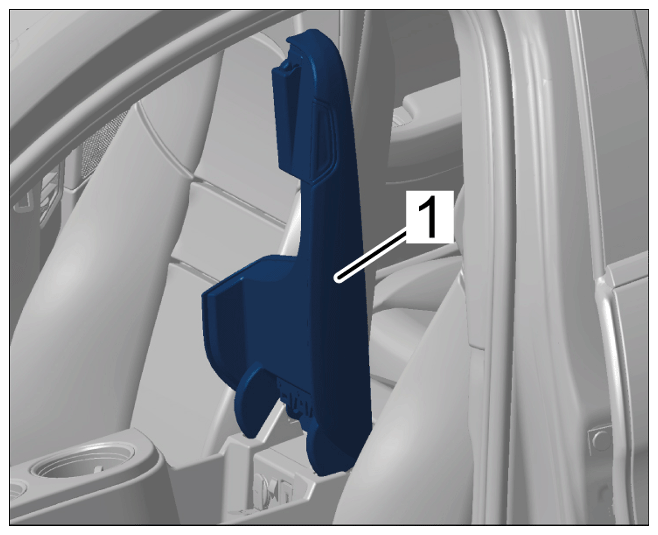

5. Remove cover for oddments tray -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing cover for oddments tray
