Removing Package Box
WARNING: This page is about a different variant/trim than selected.

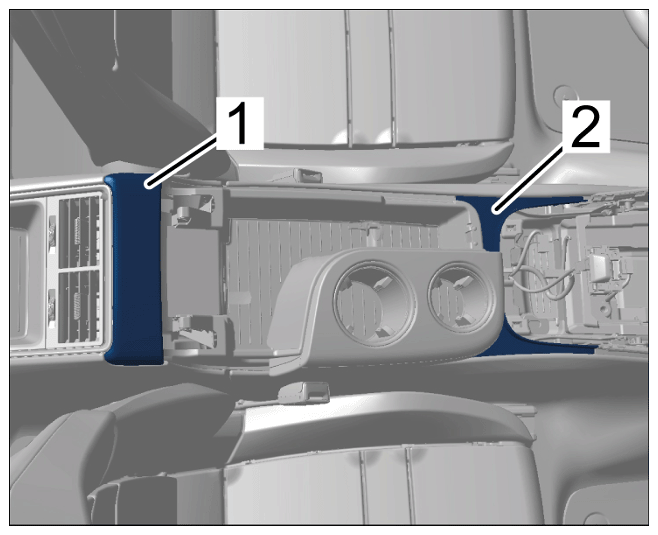

- Unclip rear cover -1-
using a plastic wedge.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unclipping rear cover
- Unclip front cover -2-
using a plastic wedge.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unclipping front cover
- Remove package box -5-
.
- 3.1 Unscrew and remove screws -3 and 4-
.
- 3.2 Remove package box -5-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing package box
