Removing Glove Box

WARNING: This page is about a different variant/trim than selected.

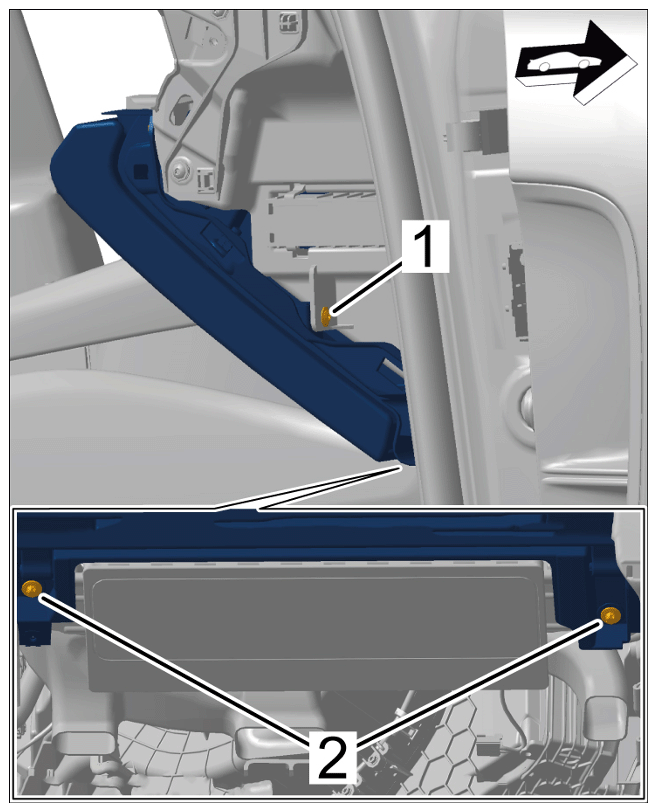

Unscrew and remove screws -1 and 2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws

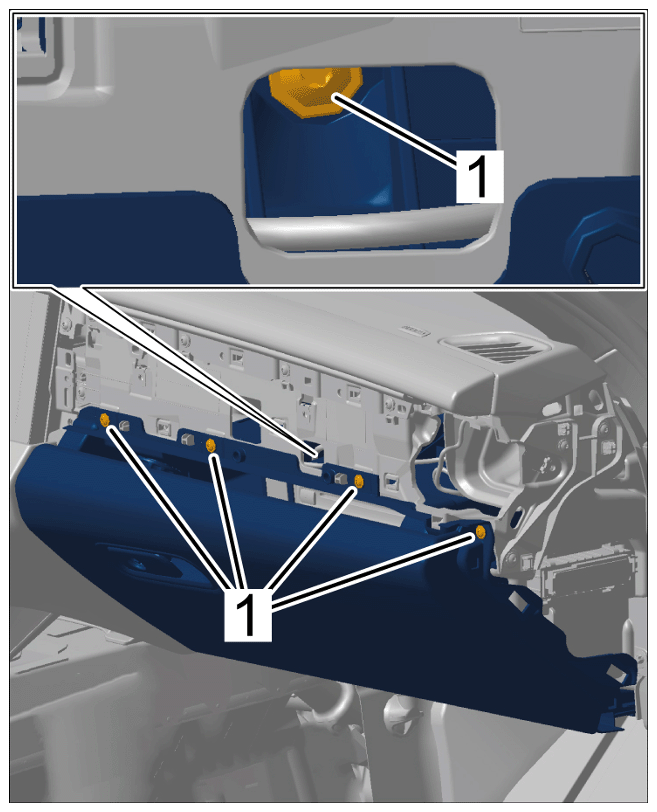

Unscrew and remove screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws
Carefully remove glove box and lower it slightly.

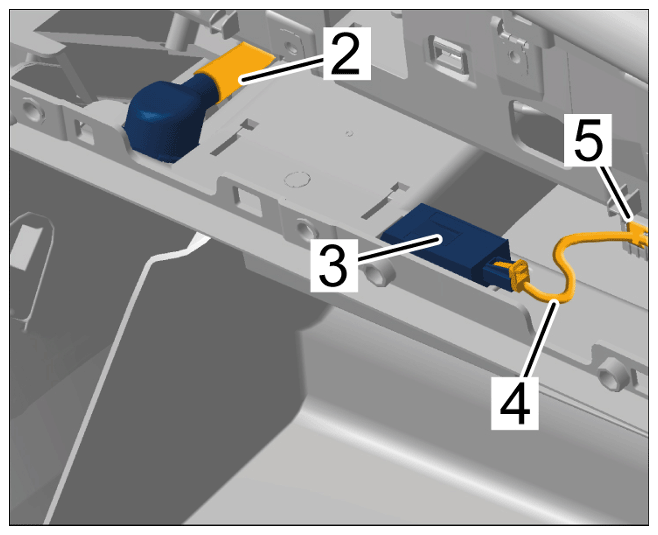

Pull off air-conditioning line -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling off air-conditioning line
Guide glove box light -3- through the opening.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guiding glove box light through
Unclip electric line -4- with clip -5- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping electric line
Set the glove box down in the footwell.

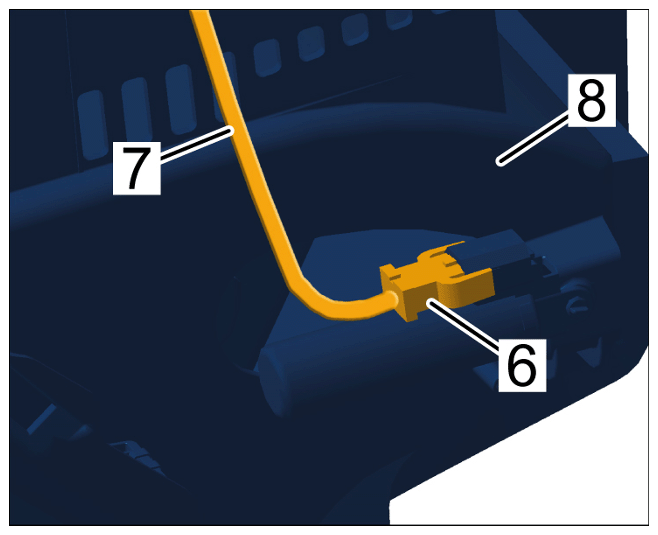

Release and disconnect electric plug connection -6- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection
Unclip electric line -7- at the glove box -8- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping electric line
Remove glove box.
