Removing Glove Compartment Lock

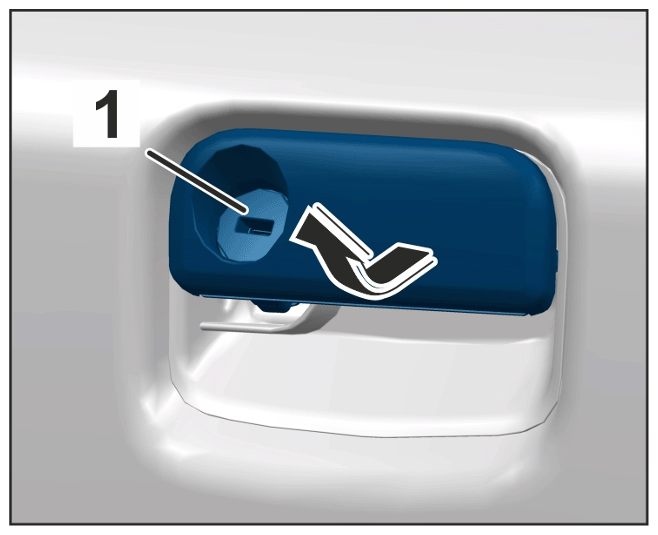

1. Lift the handle -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lifting handle

   Information

   The rubber stop on the handle can loosen or fall out when removing the safety clip.

   Fit rubber stop again correctly.

2. Remove safety clip -2-  from lock -1-  .

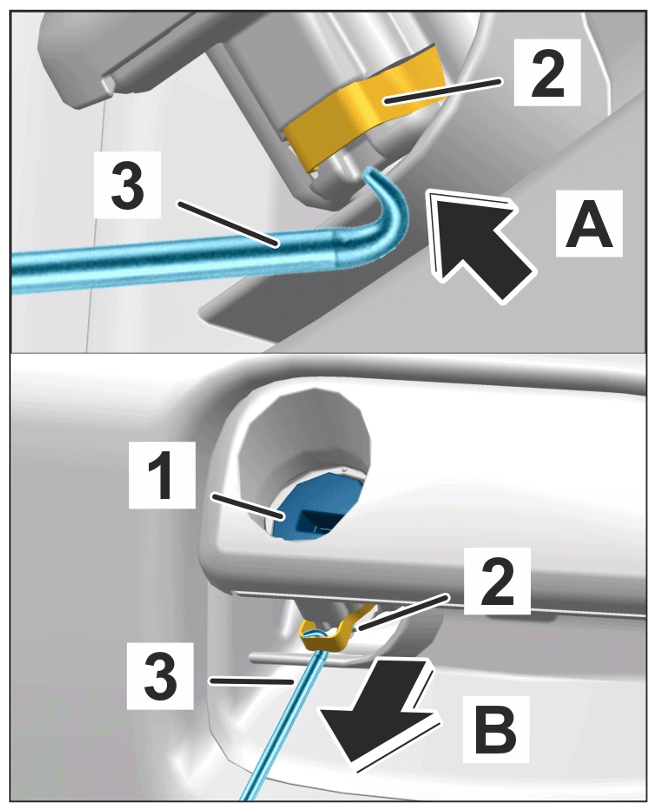

   1. 2.1 > 3438 - Hook -3-  must now be guided into the groove on the handle -arrow A-  .
   2. 2.2 Remove safety clip -2-  completely -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing safety clip

3. Remove lock.
   1. 3.1 Remove emergency key -4-  from the driver's key.

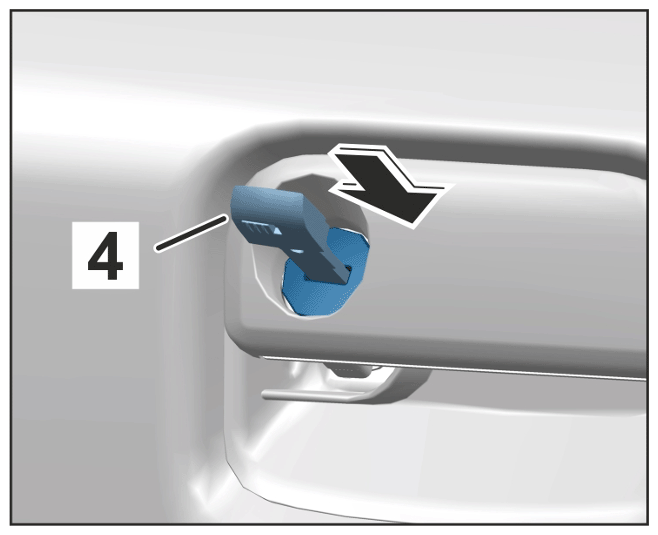

   2. 3.2 Insert emergency key -4-  into the glove compartment lock.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Inserting emergency key

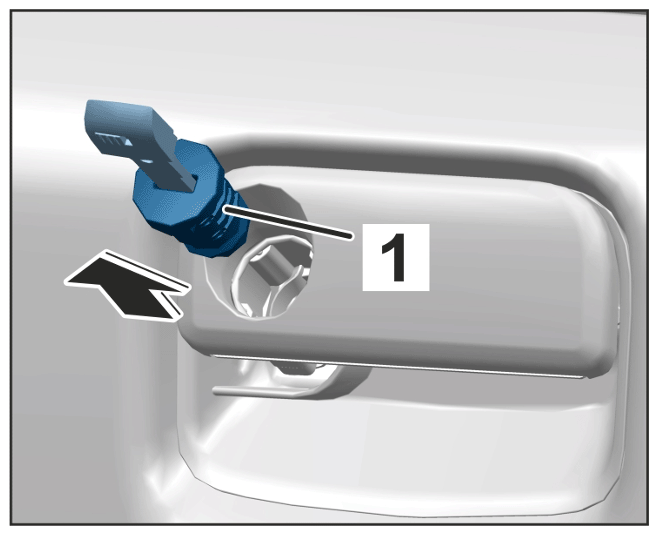

   3. 3.3 Pull lock -1-  with emergency key out of the handle -arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing lock
