Removing (Front) Inner Door Sill Trim

WARNING: This page is about a different variant/trim than selected.

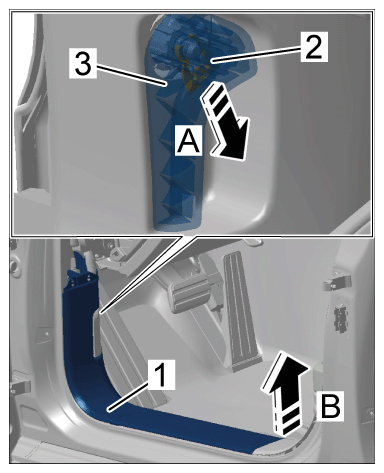

  1. Driver's side only:

    Release lock -2-  using a suitable tool -arrow A-  and remove lever for front lid release -3-  .

    G15866390Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing lever for front lid release

    Information

    To prevent damage, use a suitable tool as a support during removal at accessible connection points.

  2. Unclip (front) inner door sill trim -1-  .
    1. 2.1 Unclip (front) inner door sill trim -1-  from the B-pillar trim panel using a suitable tool -arrow B-  .
    2. 2.2 Unclip (front) inner door sill trim -1-  towards the front.
    G15866391Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing (front) inner door sill trim

    Vehicles with illuminated door entry guards:

  3. Disconnect electrical plug connection.
