Removing Coolant Temperature Sensor

1. 1.1 Loosen screw-type clamp on pressure hose for charge-air cooler -2-  at the pressure pipe.
2. 1.2 Press pressure hose for charge-air cooler -1-  at the pressure pipe aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

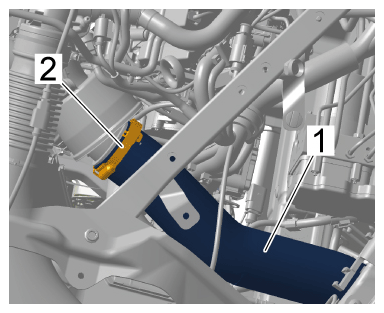

Disconnecting pressure hose for charge-air cooler at the pressure pipe

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

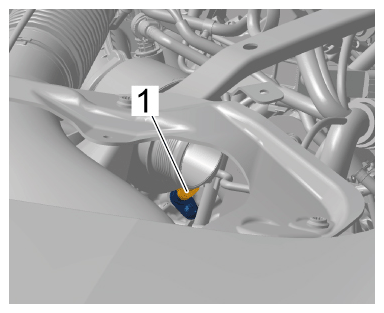

Releasing and pulling off electric plug connection

1. 3.1 Place cloths underneath.
2. 3.2 Unscrew and remove screw -2-  .
3. 3.3 Remove coolant temperature sensor -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

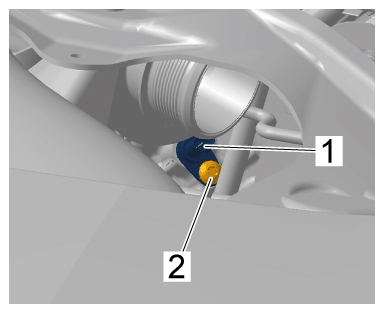

Removing coolant temperature sensor
