Removing Coolant Regulator (Thermostat Insert)

WARNING: This page is about a different variant/trim than selected.
CAUTION: Pointed or sharp objects
  • Risk of cracks, pricks or cuts

→ Wear personal protective gear.

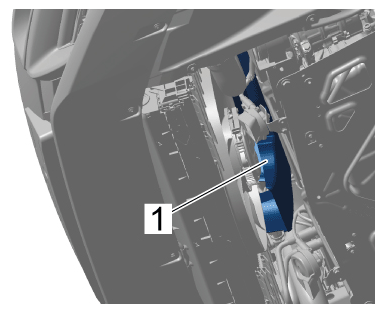

  1. Remove air guide -1-  in a downward direction.
    G15824825Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing air guide in a downward direction

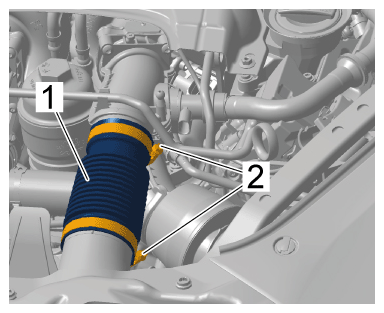

  2. Remove suction hose -1-  .
    1. 2.1 Loosen screw-type clamps -2-  .
    2. 2.2 Disconnect suction hose -1-  .
    G15824826Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing suction hose

    WARNING: Hot fluid
    • Danger of scalding

    → Let the fluid cool down.
    → Wear personal protective gear.

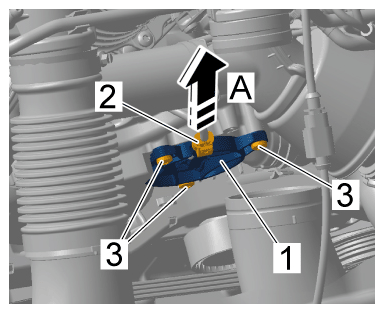

  3. Remove coolant regulator (thermostat insert) -1-  .
    1. 3.1 Release electric plug connection -2-  and pull it off -arrow A-  .
    2. 3.2 Unscrew and remove screws -3-  .
      G15824827Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing coolant regulator (thermostat insert)

    3. 3.3 Guide out coolant regulator (thermostat insert) -1-  .

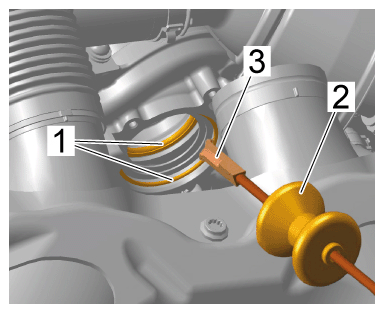

    4. 3.4 Pull out new seals -1-  using > VW771 - Multi-purpose tool -2-  and > VW771/37 - Puller -3-  .
    G15824828Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling out seals
