Remove Coolant Regulator Housing

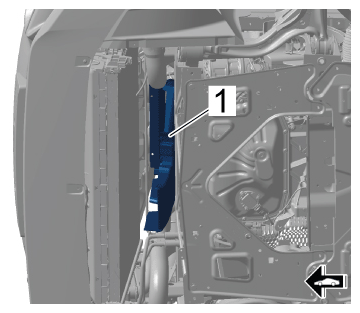

1. Remove air guide -1-  in a downward direction.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air guide

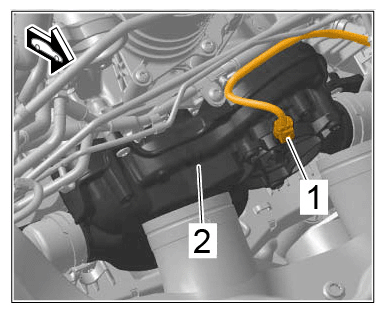

2. Release and disconnect electric plug connection -1-  on the coolant regulator housing -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

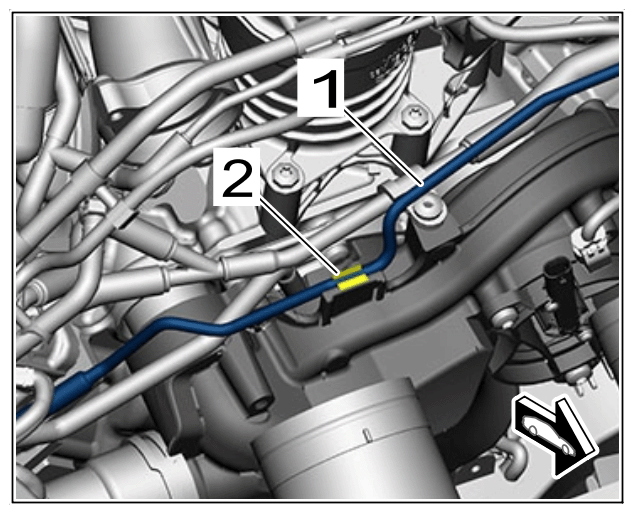

3. Unclip vacuum line -1-  from clip -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Vacuum line

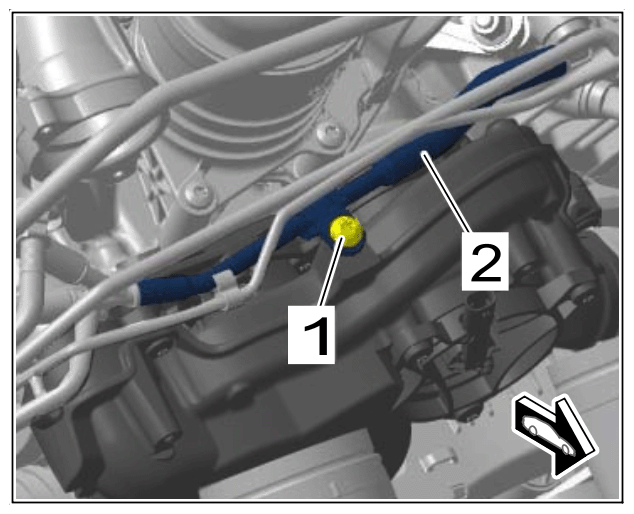

4. Unscrew screw -1-  and press vacuum line holder -2-  aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Vacuum line holder

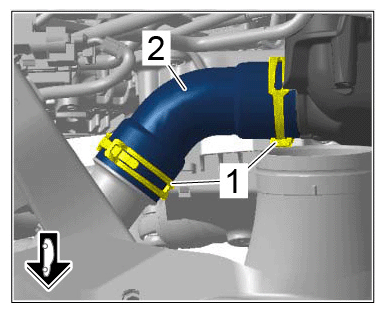

5. Loosen spring band clamp -1-  using > VAS 6890 - spring band clamp pliers  , disconnect left coolant hose -2-  and collect any escaping coolant.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant hose left

6. Close off line connections using suitable stoppers.

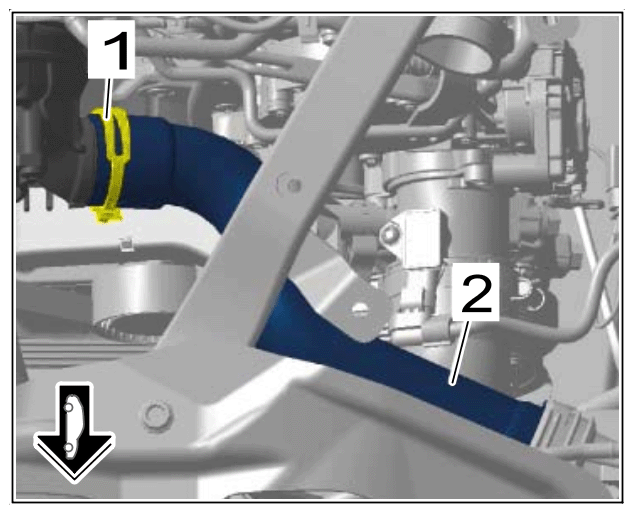

7. Release spring band clamps -1-  using > VAS 6890 - spring band clamp pliers  , disconnect coolant hose right -2-  and collect escaping coolant.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant hose right

8. Close off line connections using suitable stoppers.

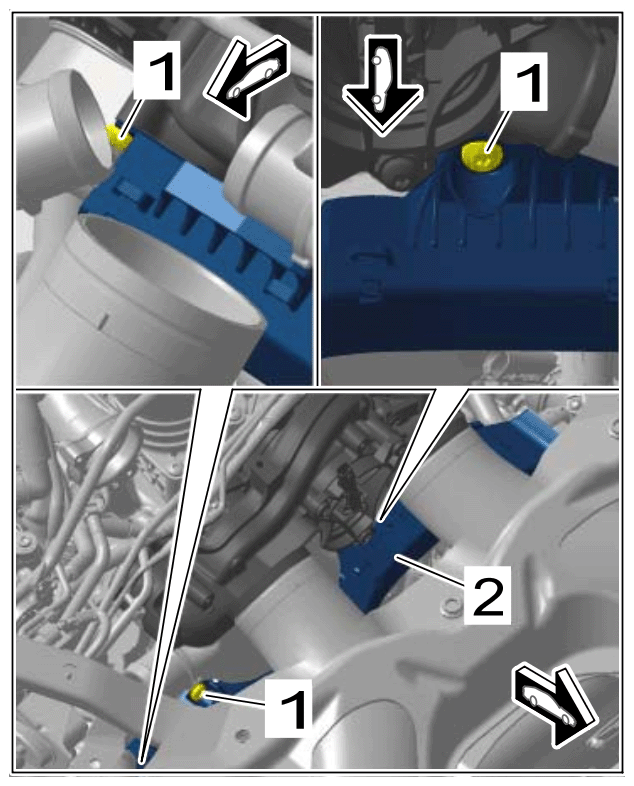

9. Unscrew screws -1-  and loosen cable duct -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   cable duct

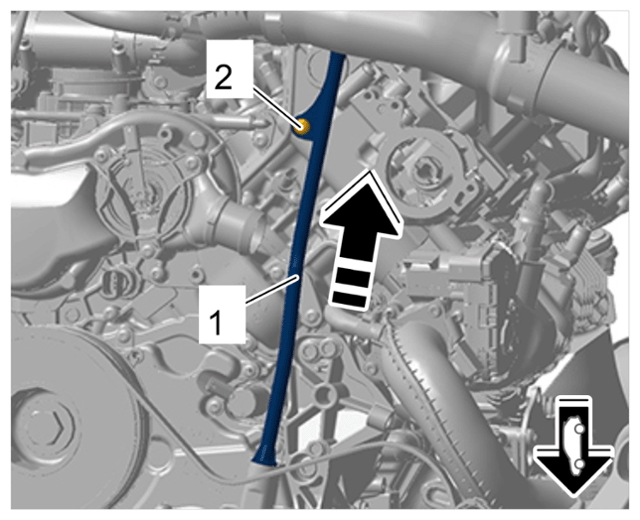

10. Remove guide tube for oil dipstick -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Guide tube for oil dipstick

    1. 10.1 Unscrew screws -2-  .
    2. 10.2 Pull out guide tube for oil dipstick -1-  in direction -Arrow-  and guide it out of the engine compartment.

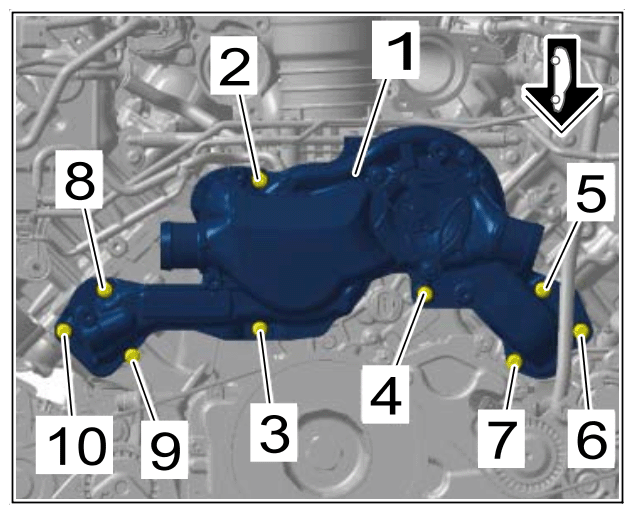

11. Remove coolant regulator housing -1-  .

Fig 1: Coolant Regulator Housing Screws Loosening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant regulator housing

1. 11.1 Unscrew screws -2 to 10-  .
2. 11.2 Remove coolant regulator housing -1-  and close off openings using suitable stoppers.
3. 11.3 Catch escaping coolant.
