Removing Charging Socket
WARNING: This page is about a different variant/trim than selected.
WARNING:
Incorrect handling of high-voltage components
- Electric shock
- Short circuit
- Fire
- Explosion
→ Only appropriately trained and authorized persons may work on high-voltage vehicles and components.
→ Required qualification: High voltage technician or high voltage expert.
→ Observe national requirements and legislation for this work.
→ Always use insulated tools, such as an > VAS 6883 - insulated tool set when working on these parts.
→ Observe general warning notices for working on the high-voltage system.
→ > 2X00IN GENERAL WARNING NOTICES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM

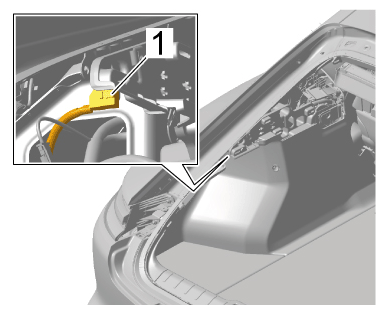

- Release and unplug electric plug connection -1-
.
Electric plug connection

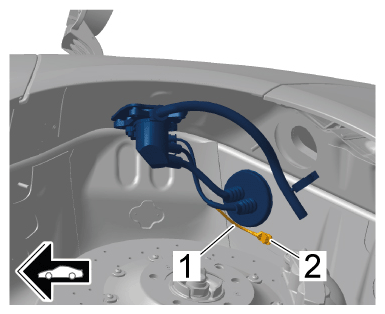

- Disconnect ground line -1- from the body.

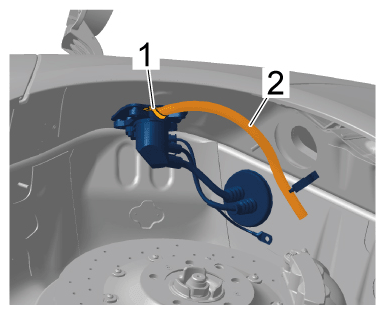

- Cut tie-wrap -1-
and pull water drain -2-
off the charging socket.
Tie-wrap

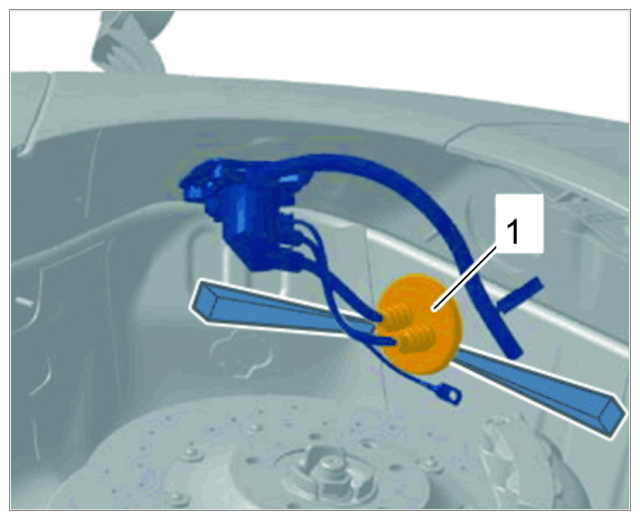

- Press grommet -1-
out of the wheel housing using a suitable tool.
Sleeve
- Release and disconnect connector for loudspeaker.
- Guide electric lines out of the passenger compartment into the wheel housing.

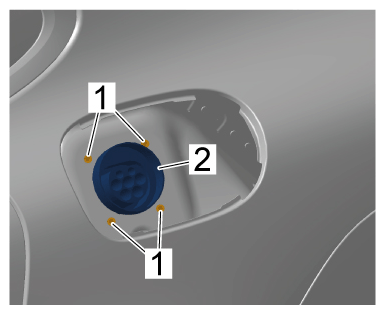

- Unscrew fastening screws -1-
and pull charging socket -2-
down out of the fuel tank well.
Charging socket
