Replacing The Battery
- Irreparable damage to control unit
- Damage to control unit
- Fault entries in the control unit
- Control unit programming/coding is aborted
- Malfunctions in the control unit, even during programming/coding
→ Switch off ignition before disconnecting the control unit.
→ Make sure that the power supply is not interrupted during programming/coding.
→ Connect the battery charger with at least > current 90 A to the vehicle battery.
Information
If the Gateway control unit is programmed, ensure a charging voltage of 14.0 - 14.2 V at the Gateway control unit. Adjust the battery charger's voltage if necessary. When programming is complete, reset the battery charger's voltage.
Information
The PIWIS Tester instructions take precedence since the description may be different with later Tester releases.
The procedure described here has been structured in general terms. Different text or additional information may appear on the PIWIS Tester.
Information
The AGM (Absorbent Glass Mat) battery is a maintenance-free, sealed battery.

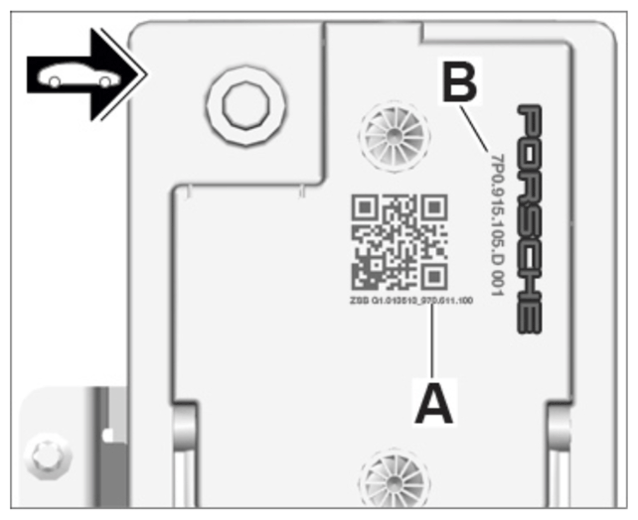

Serial number and part number on battery
- The AGM battery must not be opened. If the AGM battery is opened, it must be replaced.
- A serial number -A- and part number -B- is shown on the AGM battery.
- The serial number, part number, battery capacity and battery manufacturer must be written to the gateway control unit following replacement of the AGM battery.
- Connect the Tester to the vehicle and start it. Switch on ignition.
- Select the vehicle type if necessary.
- Select the Gateway control unit in the Overview. Press F12 to continue. The message "Create Vehicle Analysis Log (VAL)?" appears. Press F11 to continue.
- Select Maintenance/repairs.
- Battery replacement
must be selected. Press F12 to continue.
Follow the instructions on the tester.
- Enter the battery capacity.
- Enter the type of battery (e.g. AGM).
- Enter the battery manufacturer (first 3 letters) of the battery.
- Enter the serial number (last 10 digits) of the battery.
- Press F8 to write values.
- Read out all fault memories and erase them if necessary.
- Exit the diagnostic application. → Switch off ignition. Disconnect the tester.
