Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic values
Side strut to body	Hexagonhead bolt, M8 x 45/always replace bolts following removal	Initial tightening	20 Nm (15 ftlb.)
Side strut to body	Hexagonhead bolt, M8 x 45/always replace bolts following removal	Final tightening	+ 90°
Dome strut to body	Hexagonhead bolt, M10 x 80 with hexagon nut/always replace bolt and nut following removal	Initial tightening	50 Nm (37 ftlb.)
Dome strut to body	Hexagonhead bolt, M10 x 80 with hexagon nut/always replace bolt and nut following removal	Final tightening	+ 90°
Connection point holder to side strut	Hexagon nut, M5	Tightening torque	4 Nm (3 ftlb.)
Reservoir to side strut (PHEV only)	Internal hexagon roundhead bolt, M6 x 16	Tightening torque	8 Nm (6 ftlb.)
Intake pipe to side strut	Internal hexagon roundhead bolt, M6 x 25	Tightening torque	9 Nm (6.5 ftlb.)
A-strut to cowl panel	Hexagonhead bolt, M10	Tightening torque	40 Nm (30 ftlb.)
A-strut to cross panel	Internal hexagon roundhead bolt, M6 x 16	Tightening torque	8 Nm (6 ftlb.)
A-strut to body	Hexagonhead bolt, M8 x 1.25 x 35/always replace bolts following removal	Initial tightening	20 Nm (15 ftlb.)
A-strut to body	Hexagonhead bolt, M8 x 1.25 x 35/always replace bolts following removal	Final tightening	90°
Front-axle support (front section) to front-axle carrier	Hexagonhead bolt, M10 x 40	Tightening torque	55 Nm (41 ftlb.)
Front-axle support (front section) to front-axle carrier	Hexagonhead bolt, M8 x 30	Tightening torque	30 Nm (22 ftlb.)
Front-axle support (rear section) to front-axle carrier	Multipletooth screw, M8 x 30	Tightening torque	30 Nm (22 ftlb.)
Front-axle support (rear section) to anti-roll bar mount	Multipletooth screw, M8 x 20	Tightening torque	30 Nm (22 ftlb.)
Front axle carrier to body front	M12 x 1.5 x 90 thread/always replace bolts following removal.	Initial tightening	70 Nm (51.6 ftlb.)
Front axle carrier to body front	M12 x 1.5 x 90 thread/always replace bolts following removal.	Final tightening	+ 180°
Front axle carrier to rear body	Hexagonhead bolt, M10 x 45	Tightening torque	50 Nm (36.9 ftlb.)
Mounting anti-roll bar to body	M12 x 1.5 x 90 thread/always replace bolts following removal.	Initial tightening	70 Nm (51.6 ftlb.)
Mounting anti-roll bar to body	M12 x 1.5 x 90 thread/always replace bolts following removal.	Final tightening	+ 180°
Strut with mounting anti-roll bar to body	M12 x 1.5 x 90 thread/always replace bolts following removal.	Initial tightening	70 Nm (51.6 ftlb.)
Strut with mounting anti-roll bar to body	M12 x 1.5 x 90 thread/always replace bolts following removal.	Final tightening	+ 180°
Strut to body	Hexagonhead bolt, M10 x 25/always replace bolts following removal.	Initial tightening	50 Nm (36.9 ftlb.)
Strut to body	Hexagonhead bolt, M10 x 25/always replace bolts following removal.	Final tightening	+ 45°
Mounting anti-roll bar to front axle carrier (side)	Hexagonhead bolt, M10 x 35/always replace bolts following removal.	Initial tightening	50 Nm (36.9 ftlb.)
Mounting anti-roll bar to front axle carrier (side)	Hexagonhead bolt, M10 x 35/always replace bolts following removal.	Final tightening	+ 30°
Mounting anti-roll bar to powersteering gear	Hexagonhead bolt, M8 x 80 with hexagon nut/always replace bolts and nuts following removal.	Initial tightening	20 Nm (14.8 ftlb.)
Mounting anti-roll bar to powersteering gear	Hexagonhead bolt, M8 x 80 with hexagon nut/always replace bolts and nuts following removal.	Final tightening	+ 180°
Mounting anti-roll bar to front axle carrier (front)	Round head screw, M8 x 20 with hexagon nut/always replace screws following removal.	Initial tightening	20 Nm (14.8 ftlb.)
Anti-roll bar mount to front axle carrier (front)	Round head screw, M8 x 20 with hexagon nut/always replace screws following removal.	Final tightening	+ 30°
Heat insulation on longitudinal member	Item 2: Hexagon nut	Tightening torque	2.5 Nm (1.8 ftlb.)

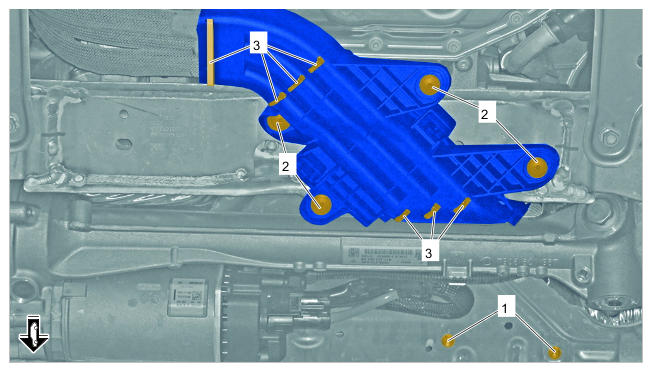

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening heat insulation (diesel engines)
Fasten holder for high-voltage lines to mounting anti-roll bar	Item 2: Hexagonhead bolt M6 x 16	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder for high-voltage lines on mounting anti-roll bar
Lower trailing arm to front-axle carrier, front (upper threaded joint)	Hexagonhead bolt, M10 x 70 and hexagon nut	Tightening torque	55 Nm (41 ftlb.)
Lower trailing arm to front-axle carrier, front (lower threaded joint)	Hexagonhead bolt, M12 x 1.5 and hexagon nut	Tightening torque	100 Nm (74 ftlb.)
Lower trailing arm to front-axle carrier, rear	Hexagonhead bolt, M14 x 1.5 and hexagon nut	Tightening torque	160 Nm (118 ftlb.)
Lower trailing arm to wheel bearing housing	Item 2: 12 point nut, M14 x 1.5	Tightening torque	130 Nm (96 ftlb.)

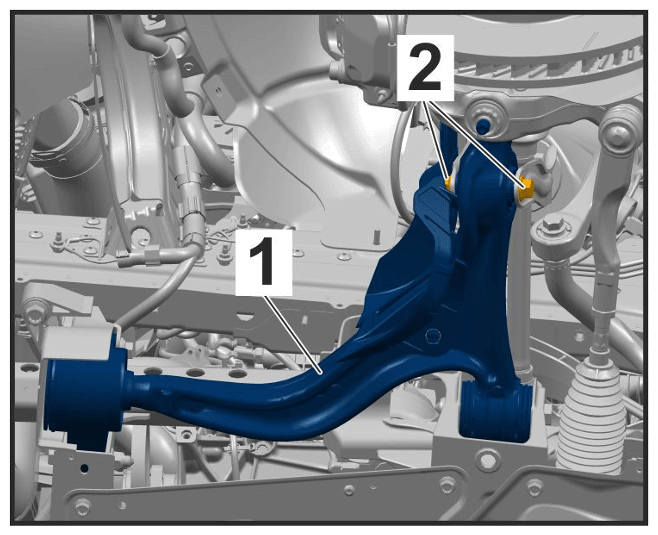

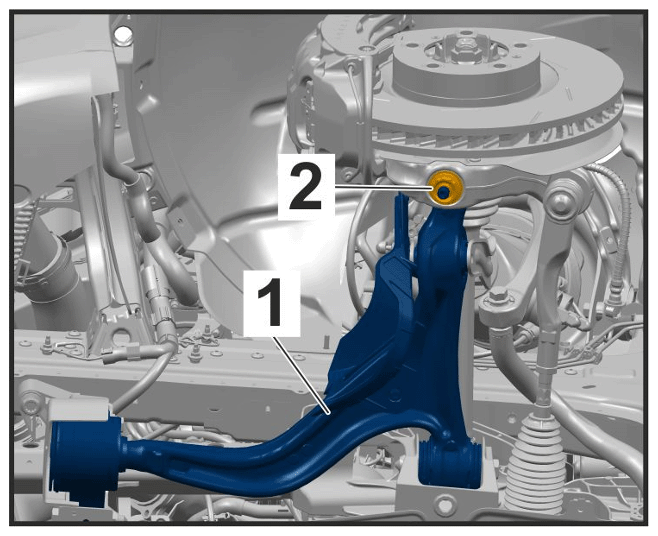

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing lower trailing arm on wheel bearing housing
Control arm spoiler to lower trailing arm	Item 2: Hexagonhead bolt, M6 x 52 and hexagon nut	Tightening torque	8 Nm (6 ftlb.)

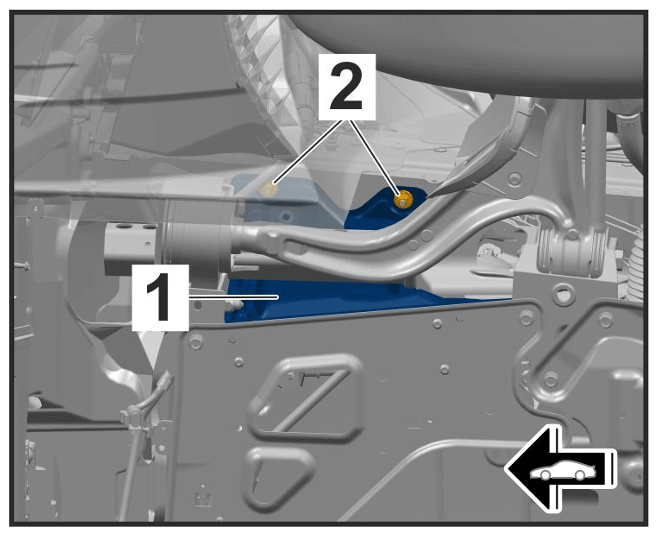

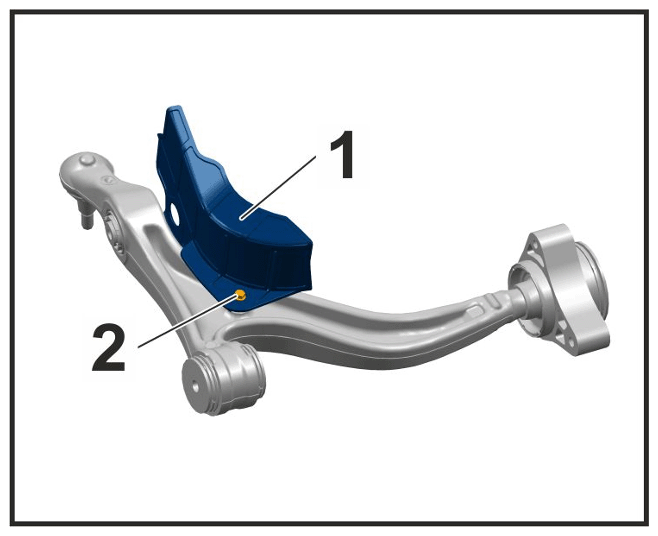

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Control arm spoiler mounting
Bearing to lower trailing arm	Item 2: Hexagonhead bolt, M10 x 33	Tightening torque	55 Nm (41 ftlb.)

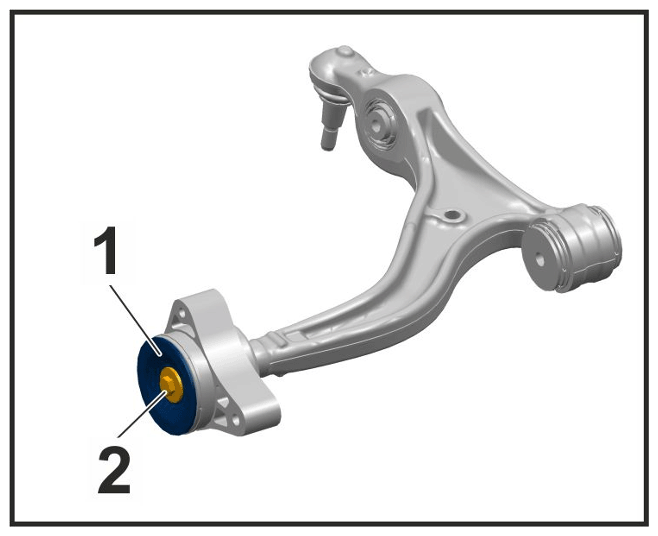

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Stop washer mounting
Upper trailing arm to body	Item 1: Hexagonhead bolt, M10 x 75 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	50 Nm (37 ftlb.)

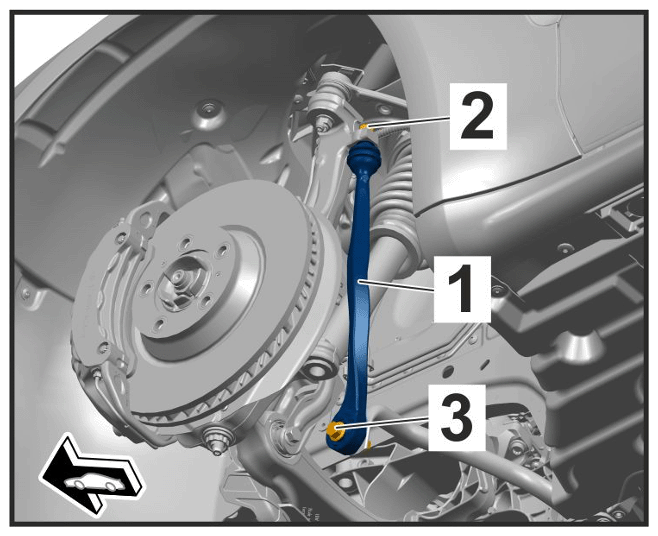

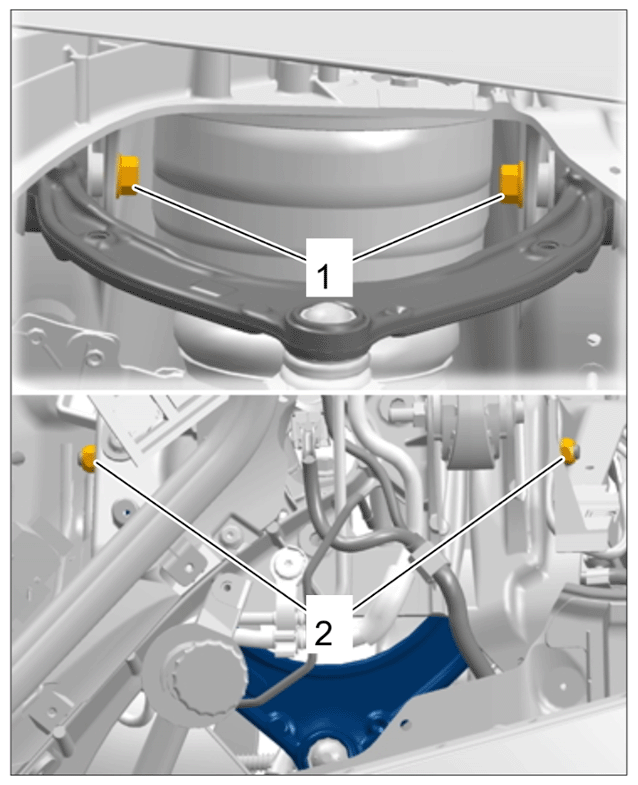

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for upper trailing arm
Upper trailing arm to body	Item 2: Hexagonhead bolt, M10 x 75 and hexagon nut/always replace bolts and nuts following removal!	Final tightening	+ 120°

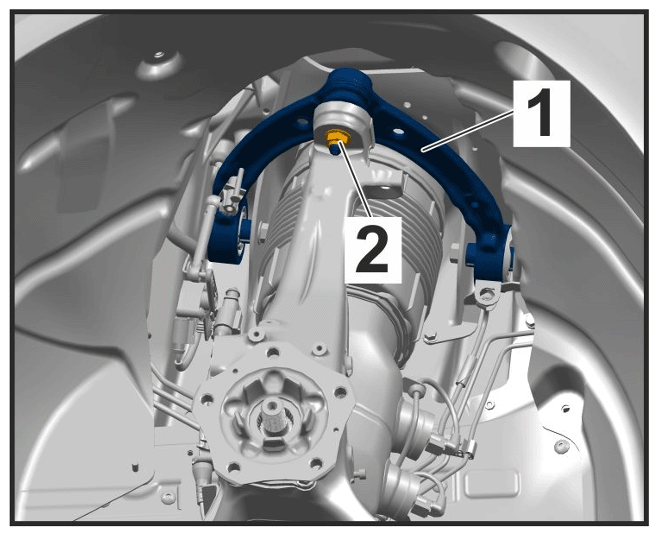

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for upper trailing arm
Upper trailing arm to wheel bearing housing	Item 2: Hexagon nut, M12 x 1.5	Tightening torque	85 Nm (63 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for upper trailing arm on wheel bearing housing
Mounting plate for wheel bearing to wheel bearing housing	Item 2: Hexagonhead bolt, M8 x 35/always replace bolts following removal!	Initial tightening	20 Nm (15 ftlb.)

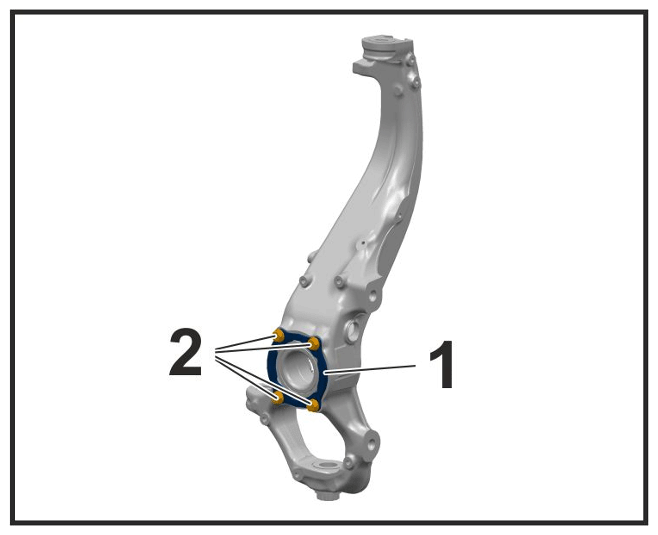

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting plate on wheel bearing housing
Mounting plate for wheel bearing to wheel bearing housing	Item 2: Hexagonhead bolt, M8 x 35/always replace bolts following removal!	Final tightening	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting plate on wheel bearing housing
Speed sensor to wheel bearing housing	Item 3: Cheese head bolt, M6 x 16	Tightening torque	8 Nm (6 ftlb.)

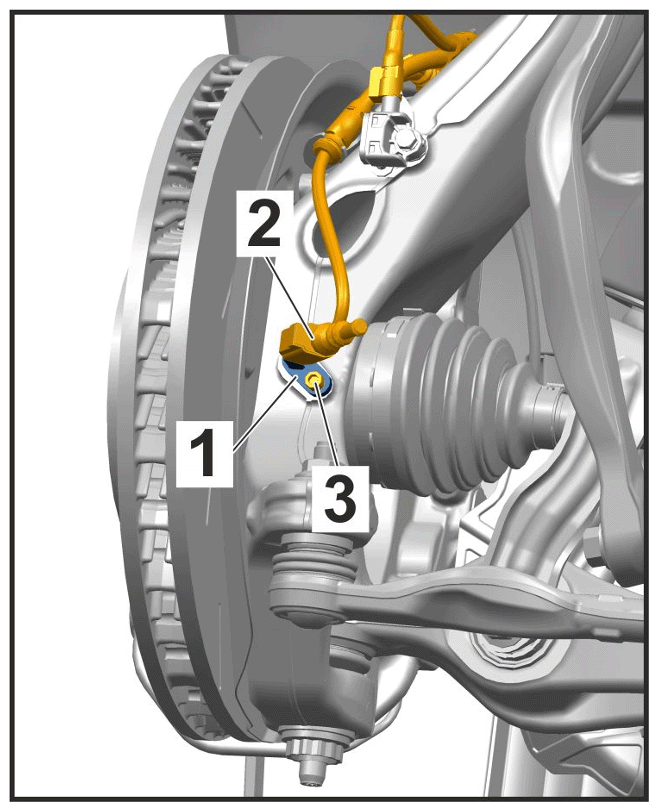

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for front speed sensor
Cable holder to wheel bearing housing	Item 2: Hexagonhead bolt, M6 x 16	Tightening torque	8 Nm (6 ftlb.)

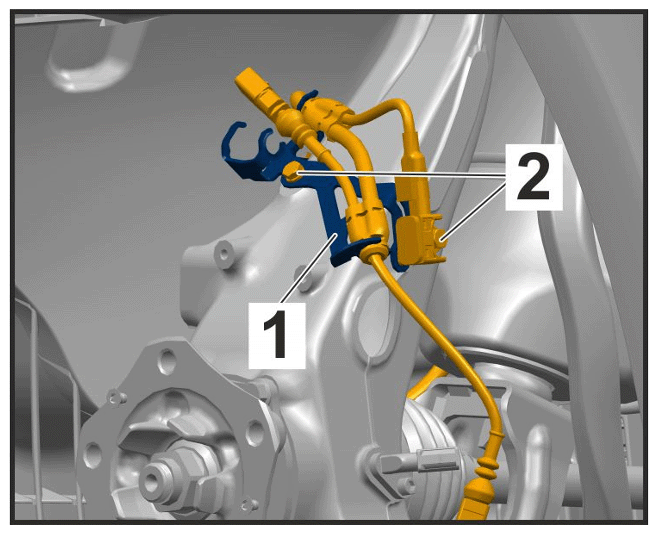

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cable holder mounting
Sensor for body with cable holder to wheel bearing housing	Item 2: Hexagonhead bolt, M6 x 25	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cable holder mounting
Brake line holder to wheel bearing housing	Item 4: Hexagonhead bolt, M6 x 16	Tightening torque	8 Nm (6 ftlb.)

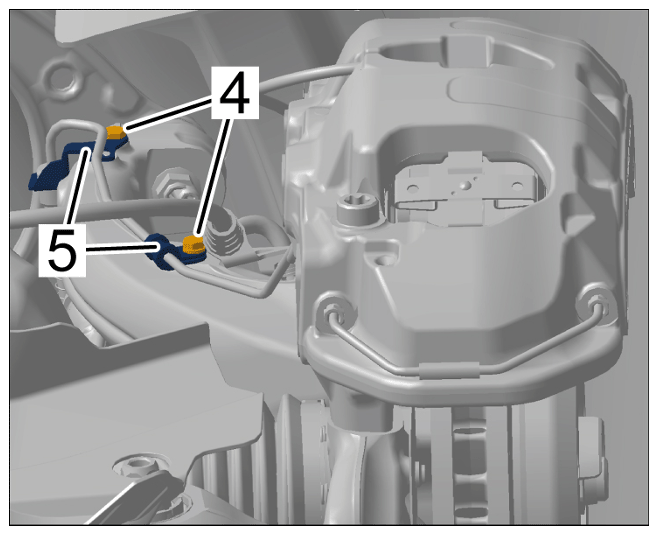

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake line holder
Tension bolt on wheel hub (vehicle without front drive shaft)	Item 1: Hexagon nut, M22 x 1.5/always replace nut following removal!	Initial tightening	200 Nm (148 ftlb.)

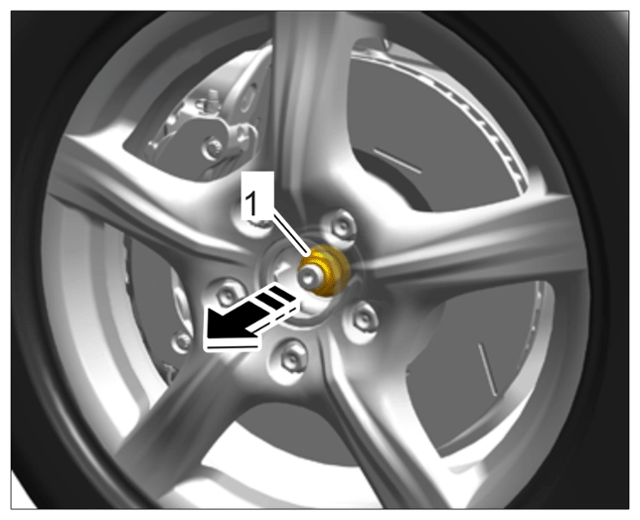

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Axle nut (tension bolt)
Tension bolt on wheel hub (vehicle without front drive shaft)	Item 1: Hexagon nut, M22 x 1.5/always replace nut following removal!	Final tightening	+ 100°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Axle nut (tension bolt)
Spring strut to lower trailing arm	Item 2: Hexagonhead bolt, M12 x 1.5 x 90 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	90 Nm (67 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for spring strut on lower trailing arm
Spring strut to lower trailing arm	Item 2: Hexagonhead bolt, M12 x 1.5 x 90 and hexagon nut/always s replace bolts and nuts following removal!	Final tightening	+ 120°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for spring strut on lower trailing arm
Spring strut to body	Item 4: Hexagon nut, M10/always replace nuts following removal!	Initial tightening	40 Nm (30 ftlb.)

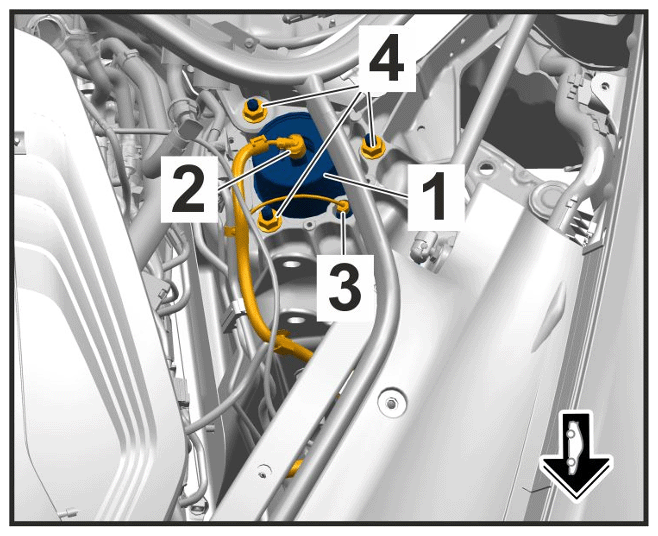

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for air-spring strut, top
Spring strut to body	Item 4: Hexagon nut, M10/always replace nuts following removal!	Final tightening	+ 45°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for air-spring strut, top
Supporting mount to piston rod, steel springs	Hexagon nut, M14 x 1.5	Tightening torque	53 Nm (39 ftlb.)
Supporting mount to piston rod, air-spring strut	M12 x 1.5 thread	Tightening torque	55 Nm (41 ftlb.)
Pressure line to air-spring strut	Item 3: Voss threaded joint	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for air-spring strut, top
Anti-roll bar to connecting link (conventional)	Item 3: Hexagonhead bolt, M12 x 1.5 x 50/always replace bolts following removal!	Initial tightening	70 Nm (52 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for connecting link for anti-roll bar
Anti-roll bar to connecting link (conventional)	Item 3: Hexagonhead bolt, M12 x 1.5 x 50/always replace bolts following removal!	Final tightening	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for connecting link for anti-roll bar
Anti-roll bar to connecting link (PDCC)	Item 3: Hexagonhead bolt, M12 x 1.5 x 60 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	70 Nm (52 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for connecting link for anti-roll bar
Anti-roll bar to connecting link (PDCC)	Item 3: Hexagonhead bolt, M12 x 1.5 x 60 and hexagon nut/always replace bolts and nuts following removal!	Final tightening	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for connecting link for anti-roll bar
Anti-roll bar clamps to anti-roll bar mount	Item 2: Hexagonhead bolt, M10 x 32/always replace bolts following removal!	Initial tightening	50 Nm (37 ftlb.)

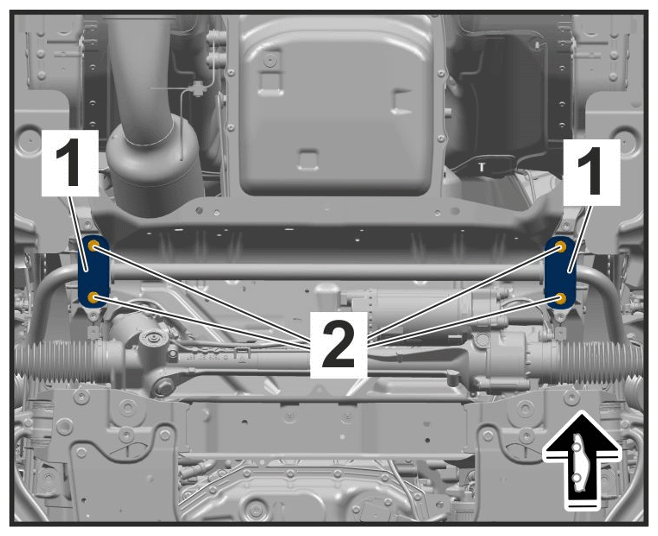

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar mount
Anti-roll bar clamps to anti-roll bar mount	Item 2: Hexagonhead bolt, M10 x 32/always replace bolts following removal!	Final tightening	+ 30°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar mount
Connecting link to wheel bearing housing	Item 2: Hexagon nut, M10/always replace nuts following removal!	Initial tightening	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for connecting link for anti-roll bar
Connecting link to wheel bearing housing	Item 2: Hexagon nut, M10/always replace nuts following removal!	Final tightening	+ 45°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for connecting link for anti-roll bar
PDCC wire harness to anti-roll bar mount (RHD vehicles only)	Counters unk screw, M6 x 25	Tightening torque	8 Nm (6 ftlb.)
Drive shaft to wheel hub	Item 1: Hexagon nut, M22 x 1.5	Tightening torque	460 Nm (340 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Axle nut

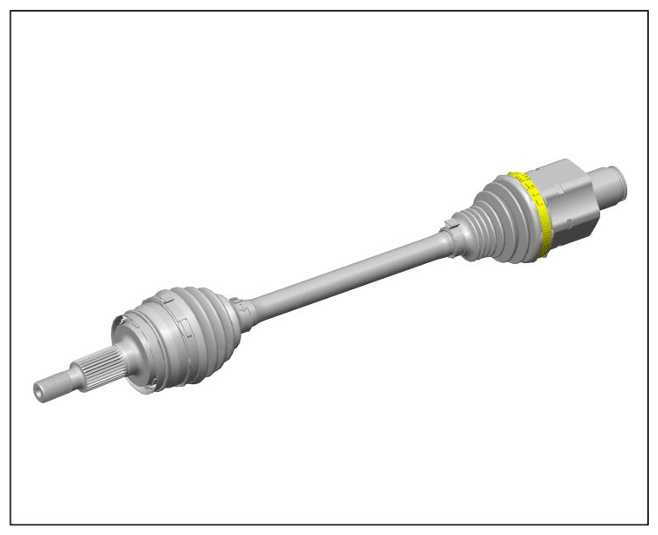

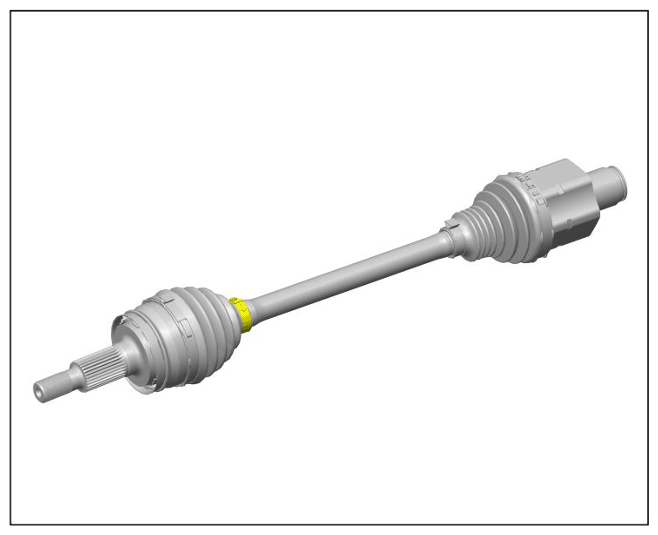

Hose clamp (load group 1, on transmission side, large)	Tighten using tool V.A.G 1682A	Tightening torque	11 Nm (8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hose clamp (on transmission side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 1, on transmission side, small)	Tighten using tool V.A.G 1682A	Tightening torque	15.5 Nm (11.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hose clamp (on transmission side, small) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 1, on wheel side, large)	Tighten using tool V.A.G 1682A	Tightening torque	21 Nm (16 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hose clamp (on wheel side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 1, on wheel side, small)	Tighten using tool V.A.G 1682A	Tightening torque	15.5 Nm (11.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hose clamp (on wheel side, small) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on transmission side, large)	Tighten using tool V.A.G 1682A	Tightening torque	11 Nm (8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hose clamp (on transmission side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on transmission side, small)	Tighten using tool V.A.G 1682A	Tightening torque	15.5 Nm (11.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hose clamp (on transmission side, small) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on wheel side, large)	Tighten using tool V.A.G 1682A	Tightening torque	21 Nm (16 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hose clamp (on wheel side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on wheel side, small)	Tighten using tool V.A.G 1682A	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hose clamp (on wheel side, small) - component can differ from illustration due to the wide range of variants
