Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic values
Brake cover panel to wheel bearing housing	Item 2: Hexagonhead bolt, M6 x 16/always replace bolts following removal!	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for brake cover panel
Brake disc to wheel hub	Arrows: Counters unk screw, M6 x 12 (micro-selflocking)/always replace screws following removal!	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake disc fastening screws
Brake cover panel to wheel bearing housing	Item 2: Hexagonhead bolt, M6 x 16/always replace bolts following removal!	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for brake cover panel
Brake disc to wheel hub	Arrows: Counters unk screw, M6 x 12/always replace screws following removal!	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake disc fastening screws

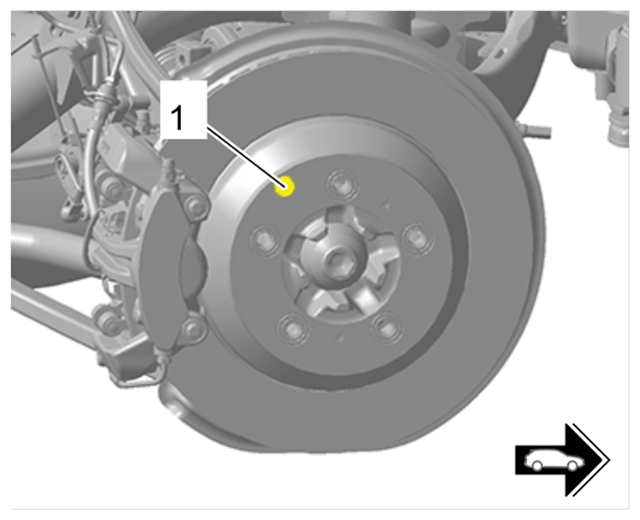

Screw plug for brake disc	Item 1: Screw, M12 x 1.5 x 5	Tightening torque	15 Nm (11 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw plug for brake disc
EPB actuator to wheel bearing housing	Arrow: depending on type - Counters unk screw, M8 x 38 or internal serration screw, M10 x 40/always replace screws following removal!	Initial tightening	20 Nm (15 ftlb.)

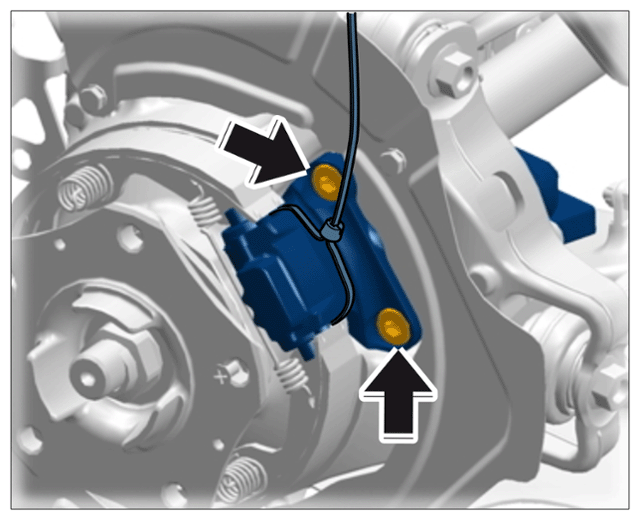

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for actuator
EPB actuator to wheel bearing housing	Arrows: depending on type - Counters unk screw, M8 x 38 or internal serration screw, M10 x 40/always replace screws following removal!	Final tightening	+ 60°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for actuator
Pedals to body	Item 2: Hexagonhead bolt, M8 x 35	Tightening torque	23 Nm (17 ftlb.)

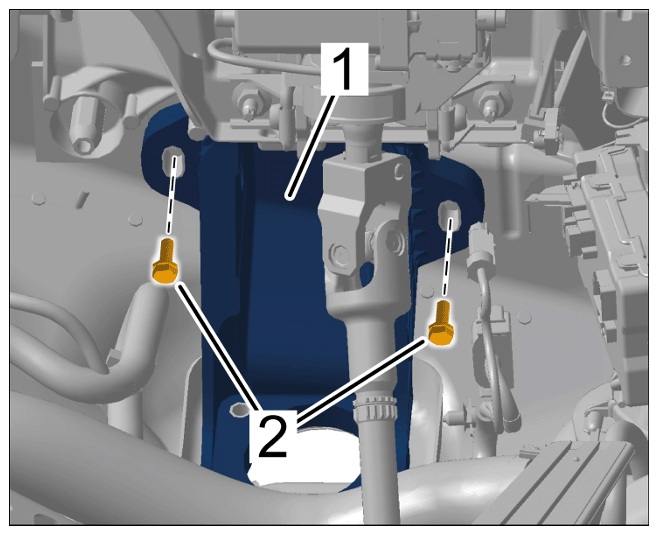

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing pedals to body
Accelerator pedal module to body	Item 4: Internal hexagon roundhead bolt, M6 x 18	Tightening torque	6 Nm (4.5 ftlb.)

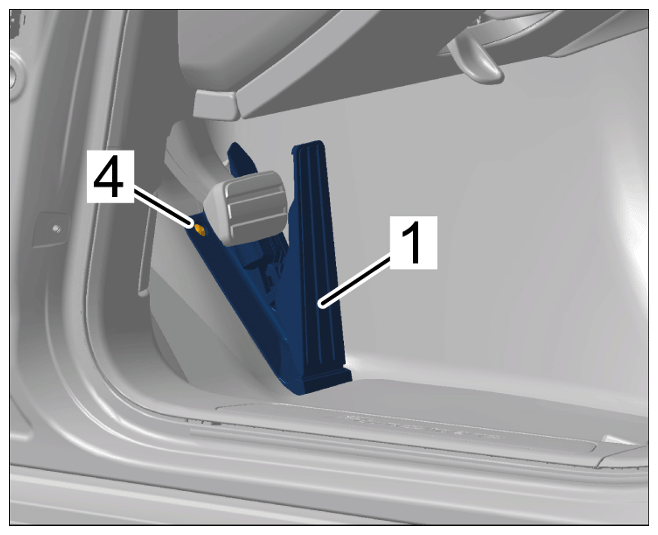

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for accelerator pedal
Actuator for electric parking brake on centre console	Item 1: Tapping screw	Tightening torque	1.5 Nm

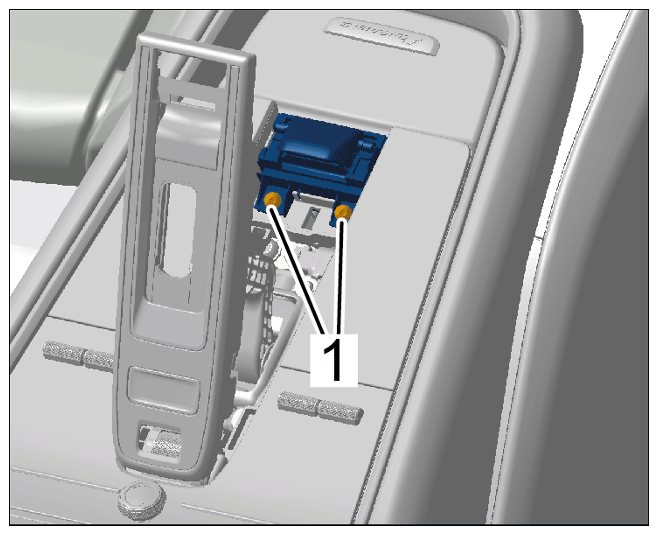

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on actuator for electric parking brake
