Removing Cylinder Head Cover (Right Cylinder Bank)

Information

The steps described here are shown on the right cylinder bank, but also apply for the opposite side.

1. Remove stoppers on camshafts -1-  .
   1. 1.1 Unscrew screw on stopper -2-  .
   2. 1.2 Remove stoppers on camshafts -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Stoppers on camshafts

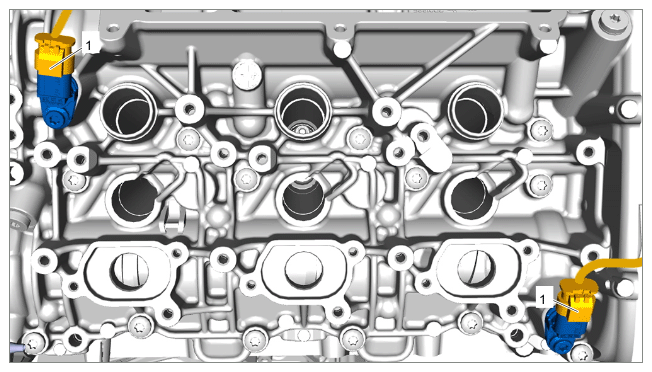

2. Release and disconnect electric plug connections for camshaft sensors -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections for camshaft sensors

3. Remove cylinder head cover -21-  .
   1. 3.1 Unscrew screws on cylinder head cover -1 to 20-  .
   2. 3.2 Depending on type:

      Screw two screws (M8 x 25) into the threaded bores -Arrows-  by hand.

      1. 3.2.1 Tighten screws alternately by half a turn until the cylinder head cover -21-  is loosened.
   3. 3.3 Loosen cylinder head cover using a plastic wedge.
   4. 3.4 Remove cylinder head cover -21-  .

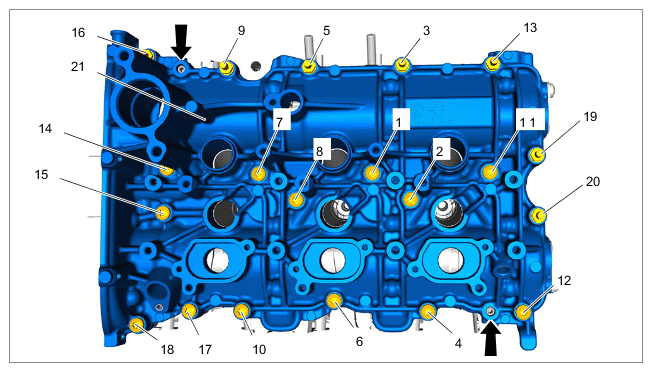

Fig 1: Cylinder Head Cover Screws Loosening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing chain housing cover on right cylinder bank
