Removing Cylinder Head (Right Cylinder Bank)

1. Remove additional coolant pump.
   1. 1.1 Unscrew screws on coolant line holder -1-  .
   2. 1.2 Unscrew screw on coolant flange -2-  and pull off the flange.
   3. 1.3 Remove additional coolant pump with coolant lines.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

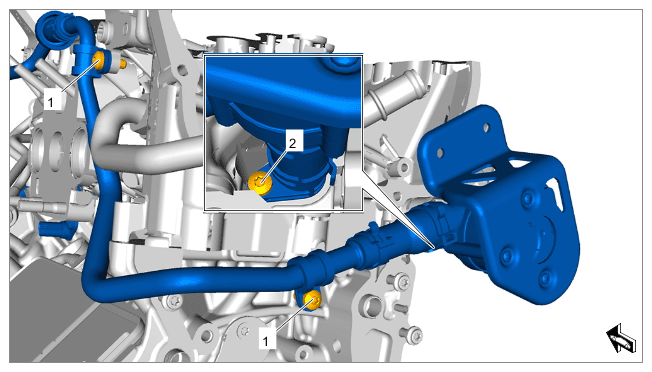

   Additional coolant pump

2. Remove side coolant pipe -1-  by unscrewing screw -2-  and removing coolant pipe.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

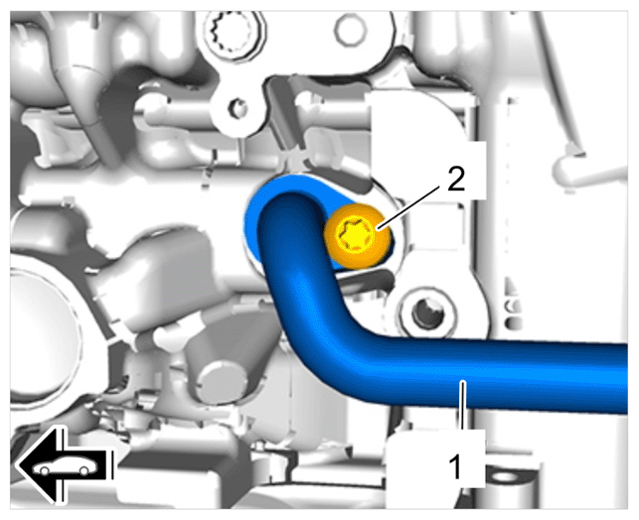

   Side coolant pipe on right cylinder bank

3. Remove front coolant pipe -1-  by unscrewing screw -2-  and removing coolant pipe.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

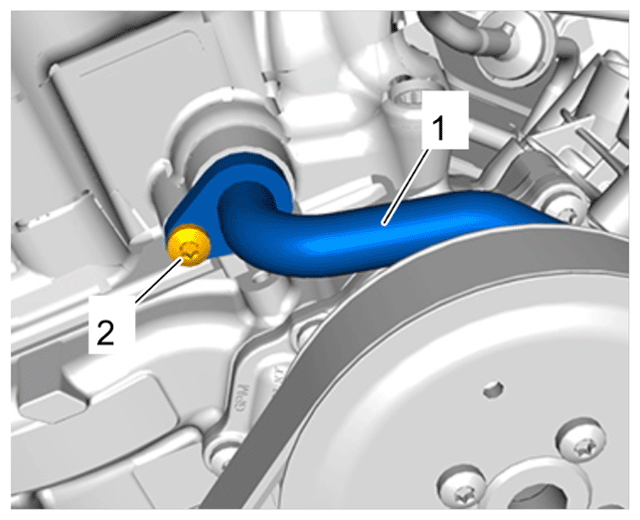

   Front coolant pipe on right cylinder bank

4. Remove cylinder head.
   1. 4.1 Unscrew screws on cylinder head in the sequence -10 to 1-  .
   2. 4.2 Remove cylinder head.

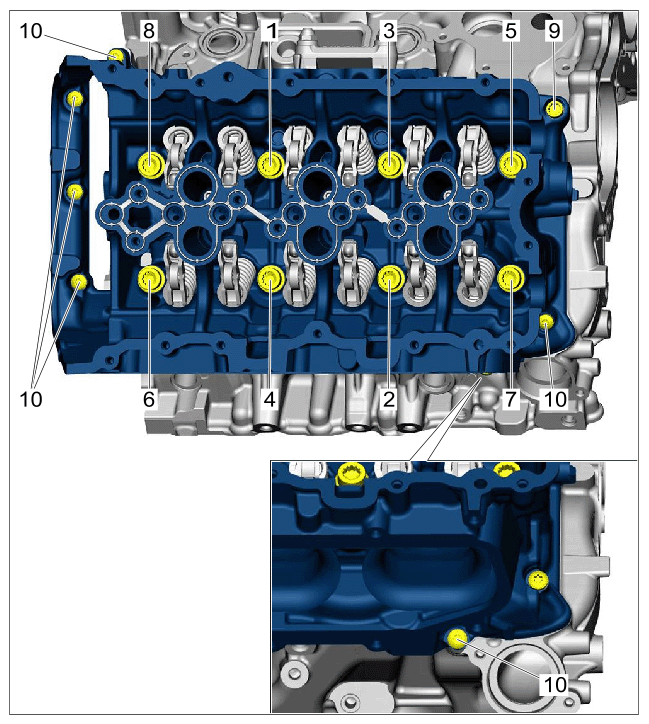

Fig 1: Cylinder Head Screws Loosening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing cylinder head on right cylinder bank
