Install Camshafts

1. Fit camshafts -2-  .
   1. 1.1 Insert camshafts -2-  into the camshaft bearing frame.

   Make sure that the gaps on the plain compression rings -5-  are facing up or down, never to the side.

   Make sure that the plain bearing -1-  is fitted as far as it will go against the cylinder head cover.

   Make sure that the thrust washer -6-  is inserted.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

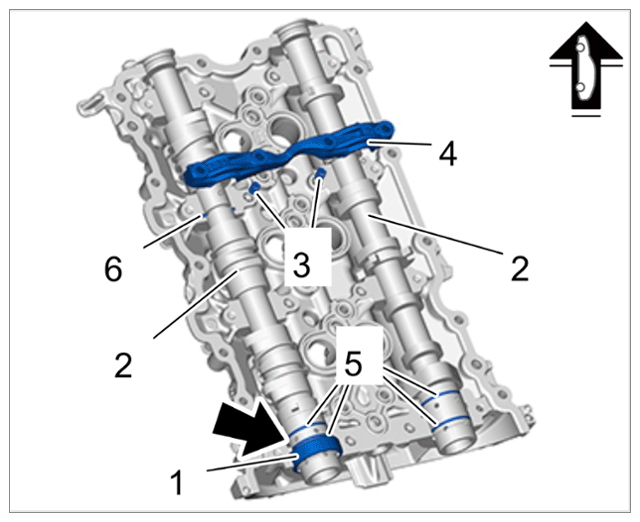

   Positioning camshafts

2. Make sure that each camshaft bearing cover -4-  is fitted with two tensioning sleeves -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tensioning sleeves in camshaft bearing covers

3. Position camshaft bearing covers -1 to 4-  .
   1. 3.1 Position camshaft bearing covers -1 to 4-  according to the marking > Identification of camshaft bearing covers

      Make sure that the tensioning sleeves engage in the bores of the cylinder head cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

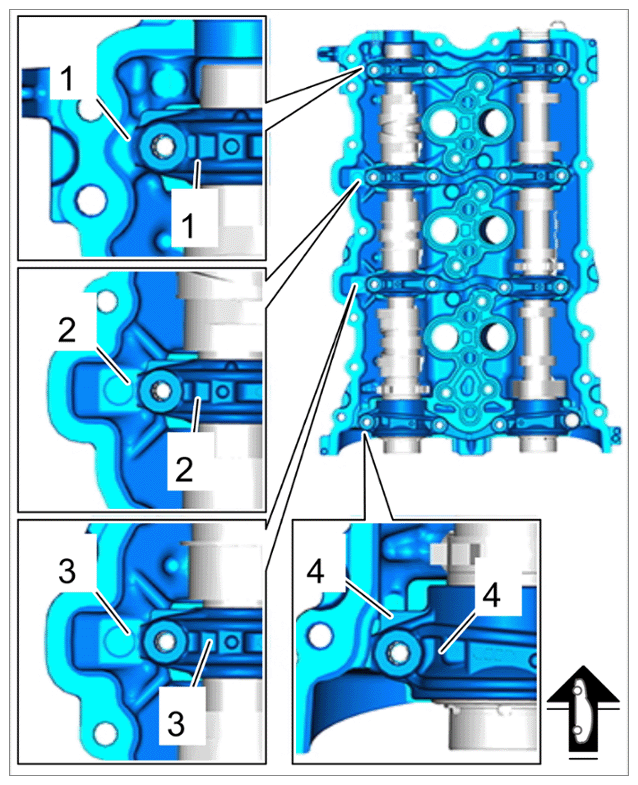

   Identification of camshaft bearing covers

4. Fit camshaft bearing covers -1 to 4-  .
   1. 4.1 Replace camshaft bearing cover screws -Arrows-  .
   2. 4.2 Fit new camshaft bearing cover screws -Arrows-  and tighten to > Tightening torque 9 Nm (6.5 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

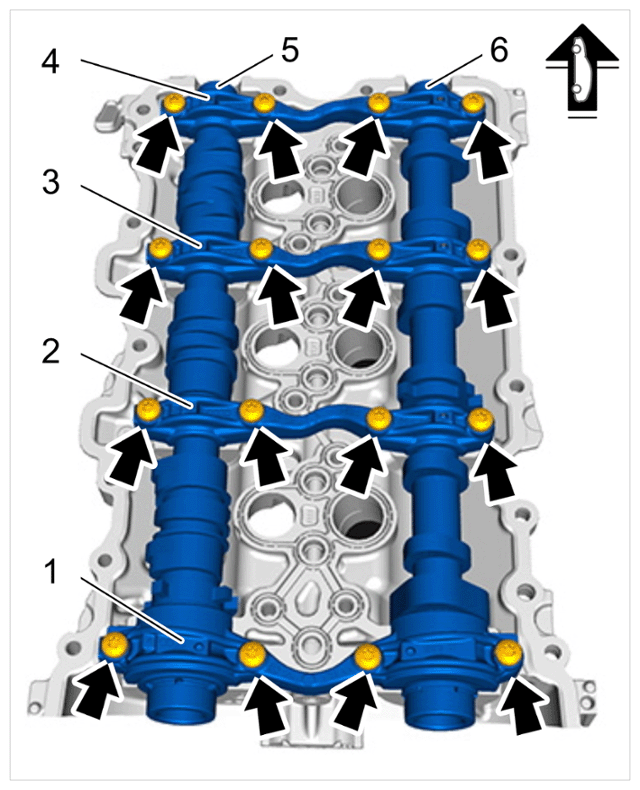

   Camshaft bearing covers

5. Fit tool set > T40331 - camshaft clamp  .

   Information

   The camshaft clamp must be easy to insert and must not be fitted using a striking tool.

   1. 5.1 Align camshafts -1-  and insert T40331/1, 4/and/5  with the inscription "A" facing away from the engine.
   2. 5.2 T40331/1,/4 and/5  must be secured using T40331/9  .
   3. 5.3 T40331/9  must be screwed in by hand.
   4. 5.4 Tighten screws on the camshaft clamps to 9 Nm (6.5 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

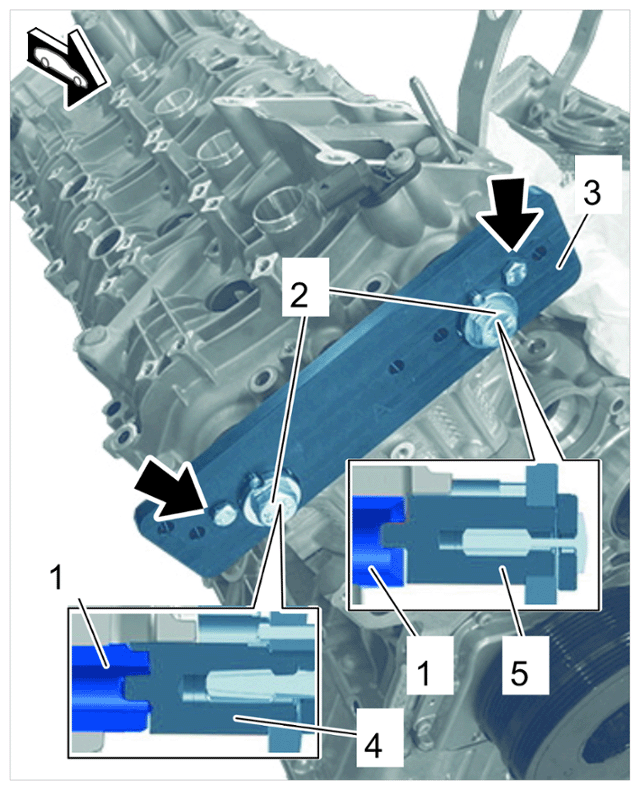

Camshaft clamps
