Replacing Double-Clutch Transmission

Information

• Some repairs are shown only on one side of the vehicle.
• Some steps also have to be performed on the opposite side of the vehicle as well.

Information

• The oil level must be checked before performing commissioning of new assemblies (engine, transmission, final drive, etc.).
• See filling capacity and test methods in the Service Information.

1. Only for vehicles without hybrid drive:
   1. 1.1 Convert input shaft.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

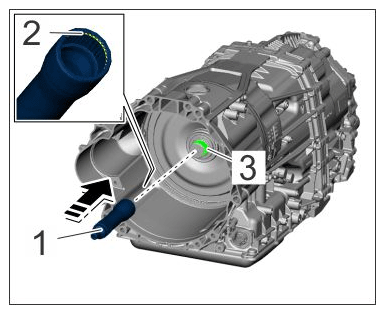

      Input shaft

      1. 1.1.1 Coat shaft splines -3-  with Longtime 3EP.
      2. 1.1.2 Carefully fit input shaft -1-  until circlip -2-  engages -Arrow-  .
   2. 1.2 Rebuild starter.

      > 276019 REMOVING AND INSTALLING STARTER

   3. 1.3 Convert wire harness for B+ -4-  .

      -1 and 2-  > Tightening torque 20 Nm (15 ftlb.)

      -3-  > Tightening torque 8 Nm (6 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

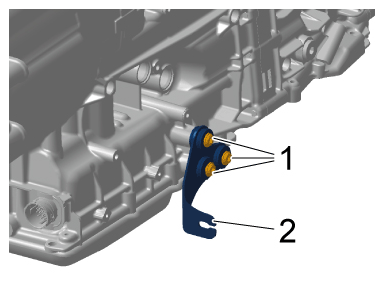

      Wire harness for B+ to transmission

2. Convert add-on parts.
   1. 2.1 Convert vibration balancer -6-  .

      -7-  > Tightening torque 20 Nm (15 ftlb.)

   2. 2.2 Convert heat shields -2 and 3-  .

      -1-  > Tightening torque 8 Nm (6 ftlb.)

   3. 2.3 Convert deflector -4-  .

      Screw in and tighten new screws -5-  .

      > Initial tightening 4 Nm (3 ftlb.)  > Torque angle 45°

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

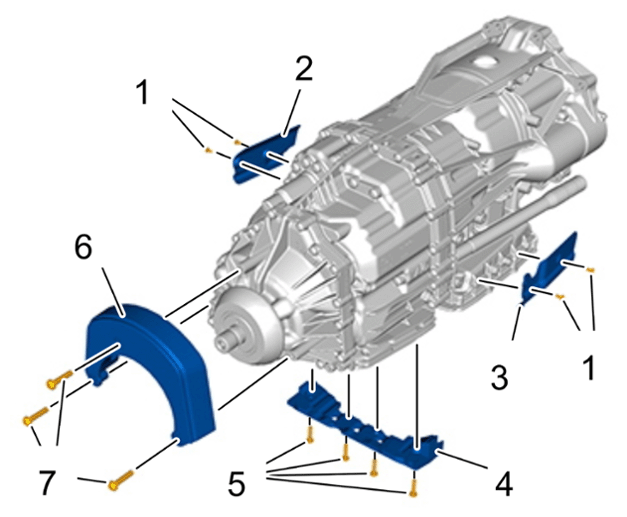

   Heat shield and vibration balancer

3. Only for V8 Diesel:

   Convert vibration damper.

   > Removing and installing vibration damper

4. Convert exhaust system holder -2-  .

   -1-  > Tightening torque 23 Nm (17 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

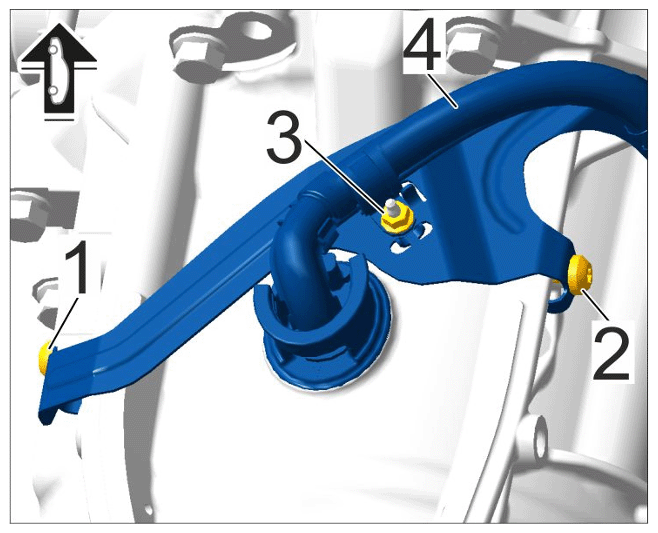

   Exhaust system holder

5. Convert transmission support -2-  .

   -1-  > Tightening torque 20 Nm (15 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

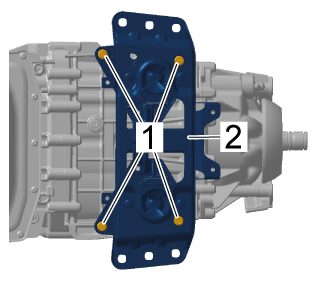

   Transmission support

6. Convert connecting shaft -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

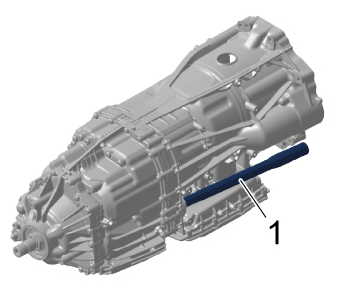

Connecting shaft
