Removing Double Clutch Transmission

WARNING: This page is about a different variant/trim than selected.
WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing

    → Secure components to prevent them from falling down.

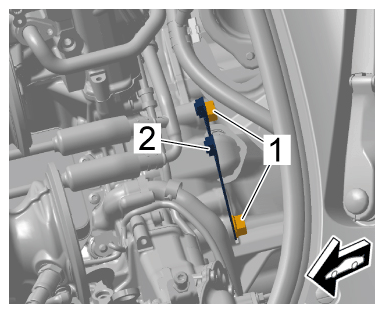

  1. Unscrew screws -1-  and remove bracket -2-  .
    G15888363Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bracket

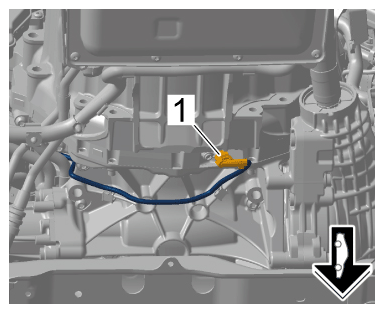

  2. Release and disconnect electric plug connection for crankshaft pulse sender -1-  .
    G15888364Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for crankshaft pulse sender

  3. Disconnect wire harness for starter.

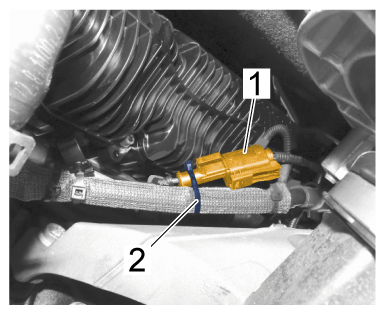

    1. 3.1 Release and disconnect electric plug connection -1-  and cut tie-wrap -2-  .
      G15888365Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connection

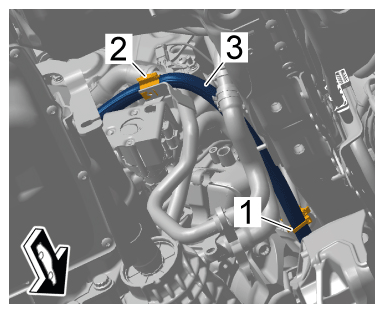

    2. 3.2 Open line bracket -1-  .
      G15888366Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric wire harness for starter

    3. 3.3 Unclip clamp -2-  and guide out electric wire harness for starter -3-  by pulling it back towards the transmission.
    G15888367Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness for starter

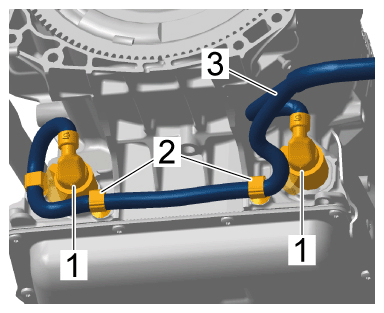

  4. Disconnect electric wire harness for transmission -3-  .
    1. 4.1 Release and disconnect electric plug connections -1-  .
    2. 4.2 Unclip clips -2-  and set electric wire harness for transmission -3-  aside.
    G15888368Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness for transmission

    Information

    The ATF pan must cover the complete surface of the transmission jack.

    If this is not the case, the gap at the ATF pan must be filled with a suitable object (piece of wood).

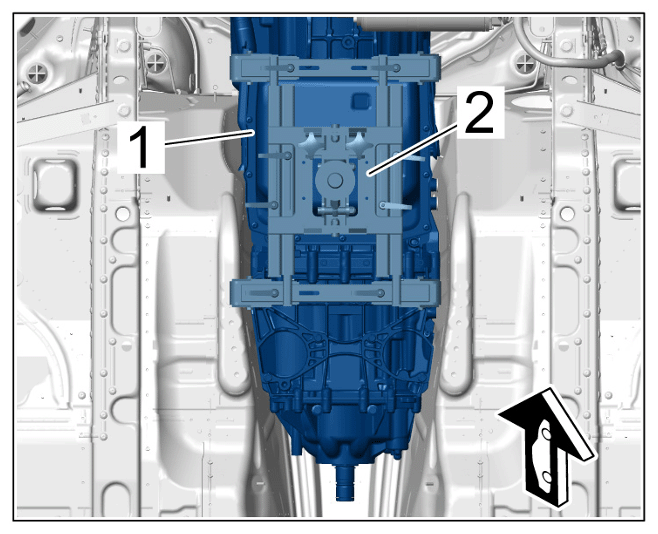

  5. Support transmission at the ATF pan -1-  using transmission jack -2-  and secure with a retaining strap.

    > VAS 6931 - Engine and gearbox jack

    > T40173A - Gearbox support

    G15888369Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission jack

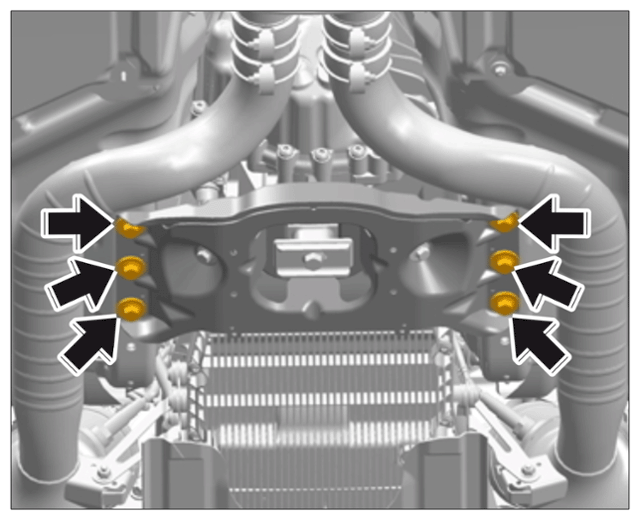

  6. Unscrew screws -Arrows-  on the transmission support.
    G15888370Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  7. For all-wheel drive vehicles:
    1. 7.1 Remove connecting shaft -3-  .
      G15888371Courtesy of PORSCHE CARS NORTH AMERICA, INC.

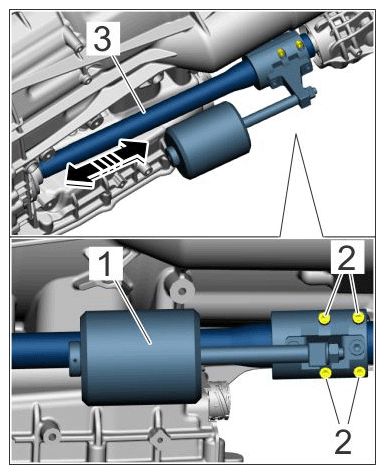

      Using impact puller 9799

      1. 7.1.1 Fit > 9799 - impact puller  using 4 screws -2-  at the groove in the connecting shaft -3-  .
      2. 7.1.2 Remove connecting shaft -3-  from the all-wheel final drive -Arrow-  using > 9799 - impact puller-1-  .

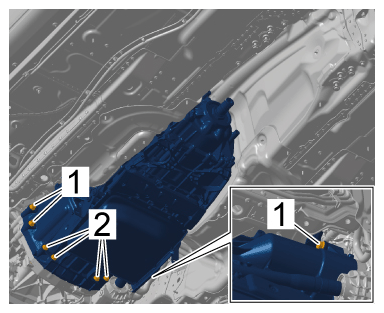

  8. Unscrew screws -1-  and -2-  .
    G15888372Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

    CAUTION: Heavy components
    • Risk of squashing

      → Wear personal protective gear.

      → Get someone to help if necessary.

  9. Guide out transmission.
