Removing Rear PCCB Brake Disc

WARNING: This page is about a different variant/trim than selected.

Select brake pad change mode using >9900 - PIWIS Tester 3 .
1. 1.1 Select → 'Brake electronics (PSM, incl. parking brake) ' in the 'Control unit overview ' and press 12 to confirm your selection.
2. 1.2 Select 'Drive links/checks ' → 'Start brake pad change mode ' and start the procedure.

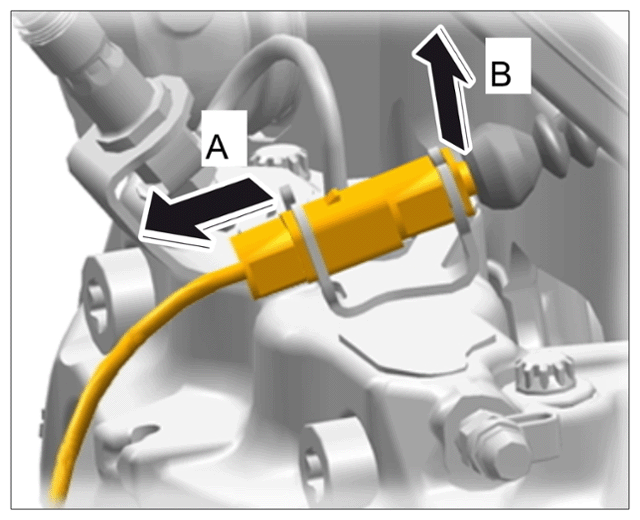

Release electric plug connection for the brake pad wear indicator, unclip it -A- and remove it from the holder -B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting electric plug connection for brake pad wear indicator
NOTE:
Removal of brake calliper
- Paint defects on brake calliper
  → Proceed with care when setting back the brake pads.

  → Protect the paintwork on the brake calliper from damage using a suitable cloth.
Set back brake pads slightly and evenly.
Information
- Do not use an impact bolter.

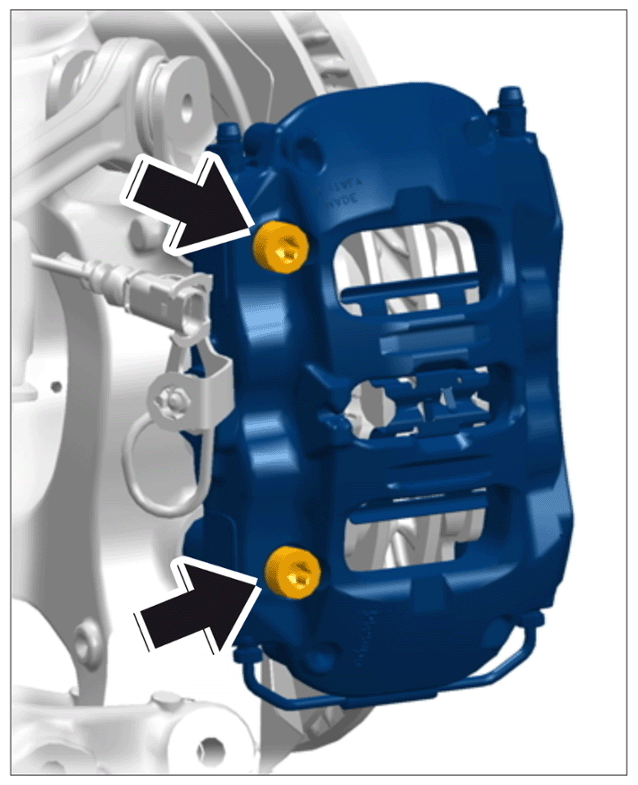

Unscrew screws -arrows- and loosen the brake calliper from the wheel bearing housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening brake calliper

Information

Do not open the brake hydraulic system.
Hang the brake calliper at a suitable position in the wheel housing.

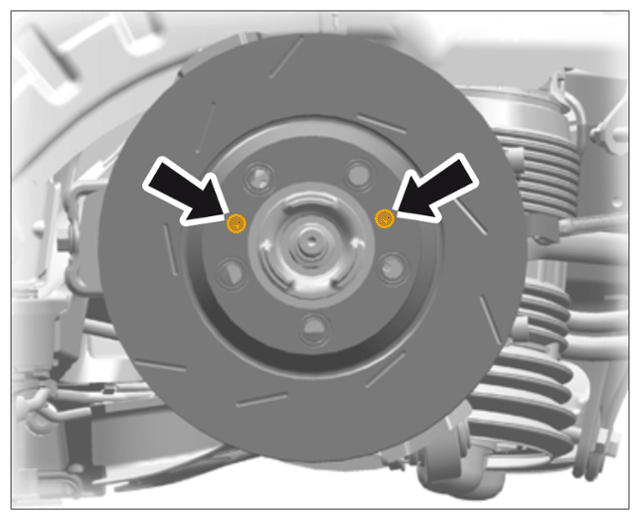

Unscrew screws -arrows- and remove rear PCCB brake disc.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear PCCB brake disc
