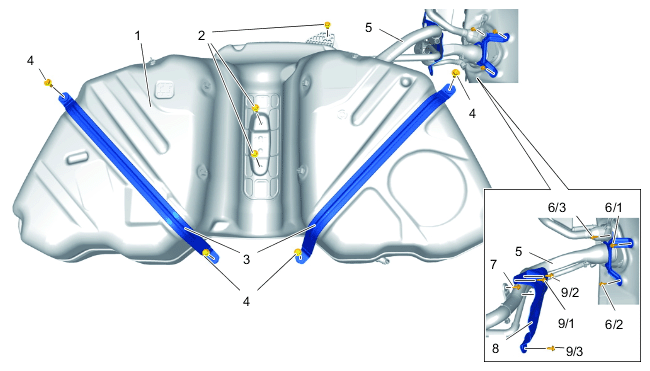

Fig 1: Fuel Tank Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel tank

1	Fuel tank
2	Screws, M8 x 30 > Tightening torque 20 Nm (15 ftlb.)
3	Restraining straps
4	Screws, M8 x 30 > Tightening torque 20 Nm (15 ftlb.)
5	Filler neck
6/1-6/2-6/3	Tightening sequence for filler neck holder: Screws, M6 x 20 > Tightening torque 8 Nm (6 ftlb.)
7	Screw, M6 x 20 > Tightening torque 8 Nm (6 ftlb.)
8	Filler neck protector
9/1-9/2-9/3	Tightening sequence for filler neck protector: Screws, M6 x 20 > Tightening torque 8 Nm (6 ftlb.)

Not shown: Screw, M6 x 20 securing fuel line protector to body > Tightening torque 8 Nm (6 ftlb.)

Not shown: Screw, M6 x 20 securing filler neck holder to body > Tightening torque 8 Nm (6 ftlb.)

Tank ventilation sensor - M6 screw > Tightening torque 9 Nm (6.5 ftlb.)

Locking ring on fuel tank flange > Tightening torque 110 Nm (81.5 ftlb.) +/- 5 Nm (3.5 ftlb.)
