Installation Position
WARNING: This page is about a different variant/trim than selected.
Information
The line routing of the suction hose was changed as it was not possible to ensure that the hose was routed without kinks with the old routing (a kinked hose causes louder discharge noises).
In the event of a complaint or after removing the suction hose, it must be routed in accordance with the new line routing.
In the event of a complaint, always replace the suction hose completely (as far as the compressor connection point)!

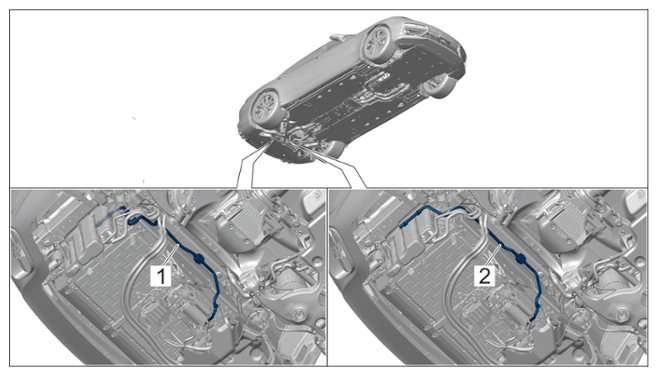

Installation position
| 1 | Old line routing |
| 2 | New line routing |
