Oil Sensors

WARNING: This page is about a different variant/trim than selected.

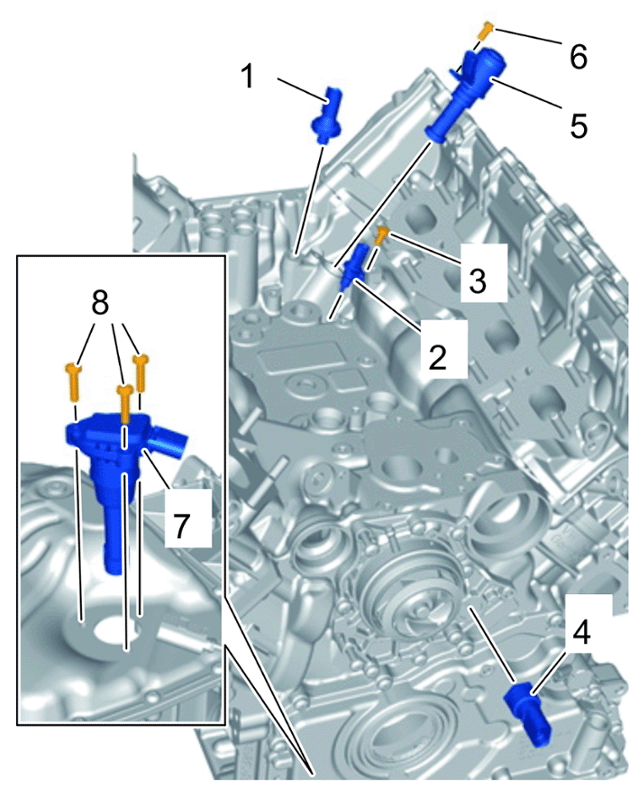

Fig 1: Oil Sensors Components Location With Torque Specification - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil sensors - V8 Turbo

1	Oil pressure switch > Tightening torque 20 Nm (15 ftlb.)
2	Oil temperature sensor
3	Screw, M6 x 12 > Tightening torque 9 Nm (6.5 ftlb.)
4	Oil pressure sensor > Tightening torque 20 Nm (15 ftlb.)
5	Oil spray jet control valve
6	Screw, M6 x 12 > Tightening torque 9 Nm (6.5 ftlb.)
7	Oil level sensor (oil pan)
8	Screw (for torque, see section on Oil pan)
