Tightening Sequence For Cylinder Head Cover

WARNING: This page is about a different variant/trim than selected.

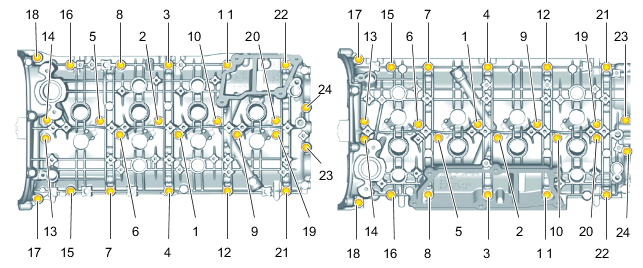

Fig 1: Cylinder Head Cover Screws Tightening Sequence - V8 Turbo
G15824879Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for cylinder head cover - V8 Turbo

1-22  Tightening sequence for cylinder head cover at the left and right
