Chain Housing Cover

WARNING: This page is about a different variant/trim than selected.

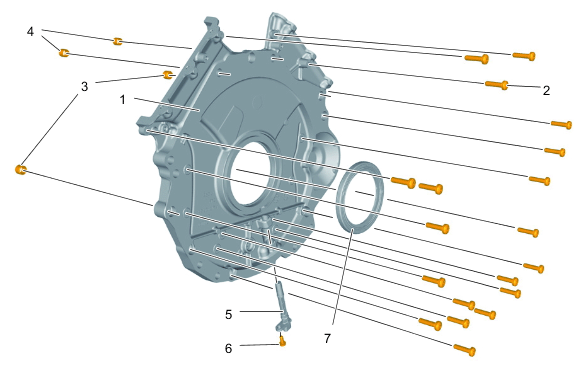

Fig 1: Chain Housing Cover Components Location With Torque Specification - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Chain housing cover - V8 Turbo

1	Chain housing cover
2	Screws, M6 x 25 > Tightening torque 9 Nm (6.5 ftlb.)
3	Dowel sleeves
4	Sleeves for transmission screws
5	Crankshaft pulse sender
6	Screw, M6 x 16 > Tightening torque 9 Nm (6.5 ftlb.)
7	Sealing ring/replace
