Applying Sealant On Chain Housing Cover At The Left And Right
WARNING: This page is about a different variant/trim than selected.
Information
Fitting and sealing components using liquid sealant.
- Clean sealing faces to remove all traces of residual sealant.
- Sealing faces must be free of grease and oil.
- Clean sealing faces with primer Loctite 7515.
- Use liquid sealant Loctite 5970-BM.

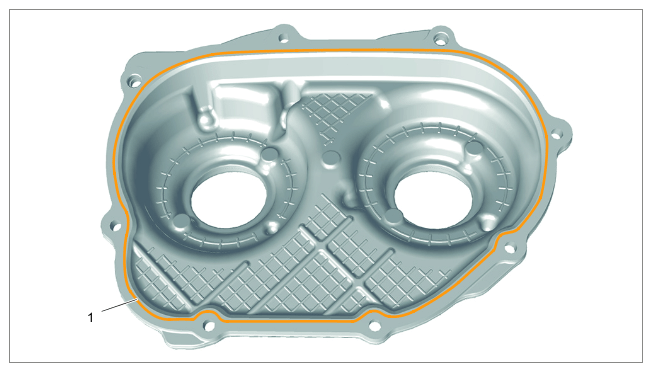

Applying sealant on left chain housing cover
| 1 | Applying sealant on left chain housing cover |

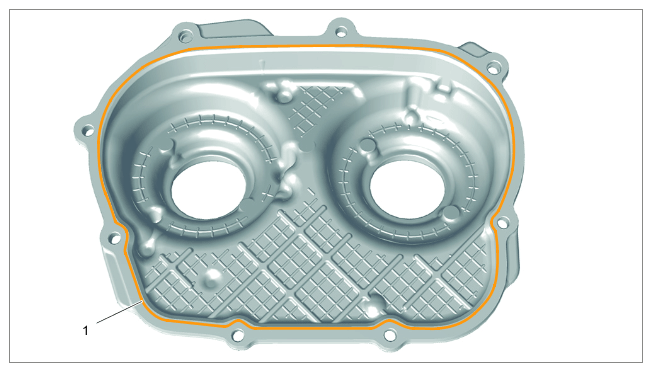

Applying sealant on right chain housing cover
| 1 | Applying sealant on right chain housing cover |
