Allocation Of Crankshaft Bearing Shells To Bearing Covers
WARNING: This page is about a different variant/trim than selected.
Allocation of crankshaft bearing shells to bearing covers

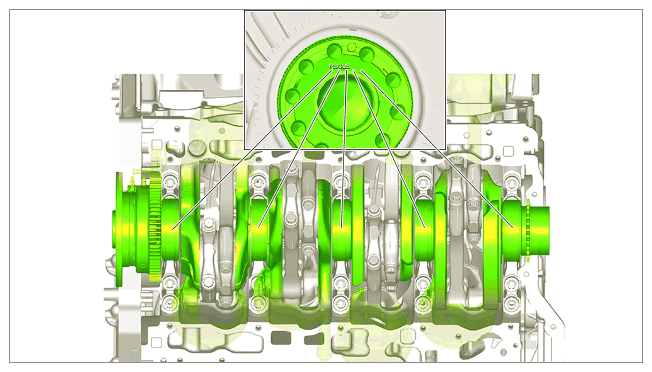

The allocation of bearing shells to the bearing covers is indicated by a letter on the front crankshaft flange as shown.
The series of letters begins with crankshaft bearing "5" (on transmission side) and ends with crankshaft bearing "1" (on pulley side).
| Letter on crankshaft flange/cylinder block | Color of bearing |
|---|---|
| R = | Red |
| S = | black |
| G = | Yellow |
| U = | green |
| B = | Blue |
